Removing Tie Rod

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Remove wheel → Removing and installing wheel .

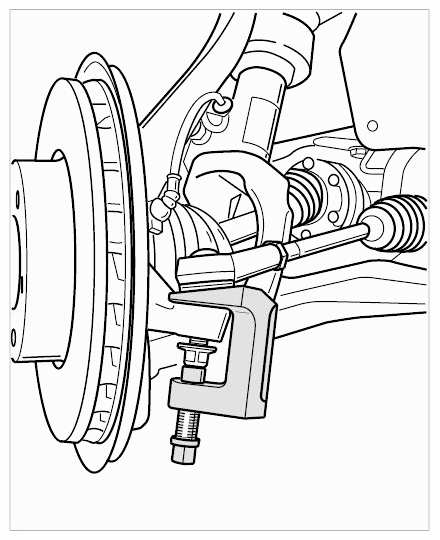

To make it easier to remove the outer tie rod joint, swivel the relevant wheel carrier so that the tie rod is fully extended. Remove the outer tie rod joints with the ball joint puller T10187. When pressing out, screw lock nut on flush (protects the ball joint thread).

Fig 1: Removing Outer Tie Rod Joints Using Ball Joint Puller (T10187)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Right tie rod: Remove heat shield near joint boot of right tie rod.

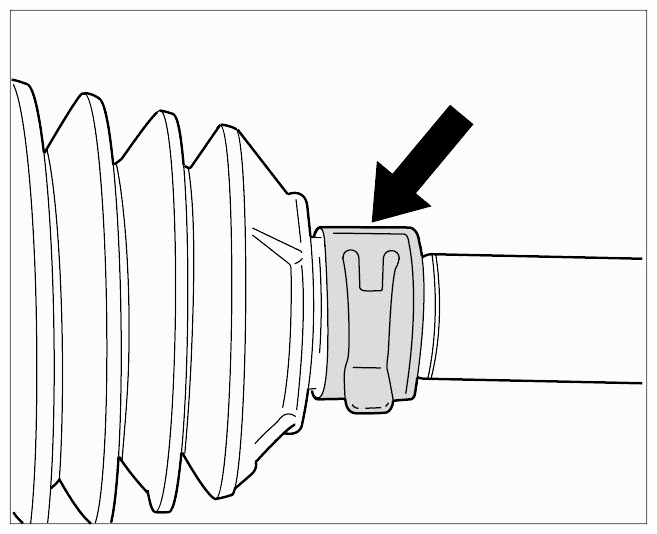

Remove small clamp on joint boot using assembly tools for spring-band clamps Nr.72.

Fig 2: Identifying Small Joint Boot Clamp
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

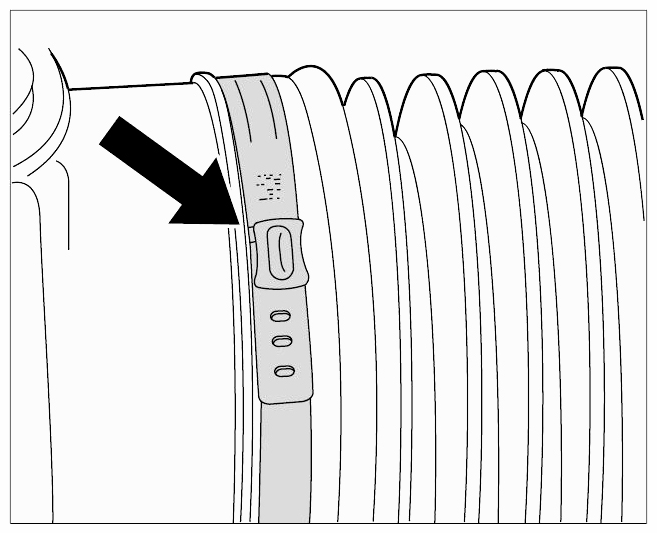

Cut open and remove large clamp on joint boot using side cutters.

Fig 3: Identifying Large Joint Boot Clamp
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

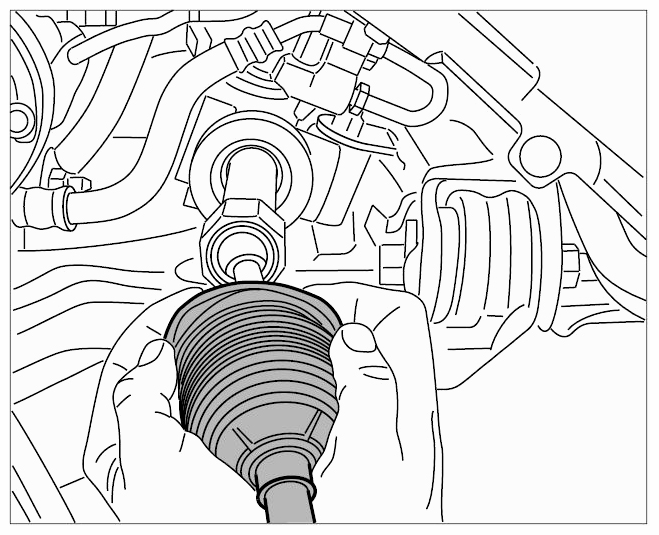

Carefully pull the joint boot outwards until the axial joint is accessible.

Fig 4: Pulling Joint Boot
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

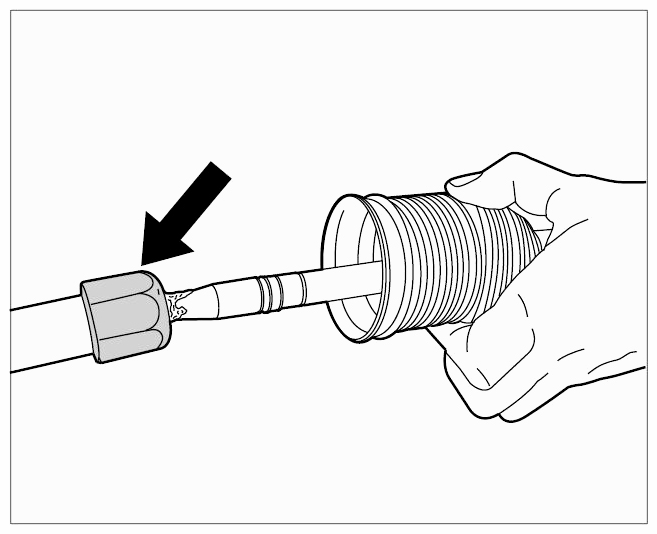

Remove axial joint from the steering rack using open-jawed wrench insert a/f 38 Nr.95-2 for torque wrench and remove the complete tie rod.

Fig 5: Removing Axial Joint From Steering Rack Using Open-Jawed Wrench
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
