Removing Steering Column Trim

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Adjust the steering column downward and to the rear.

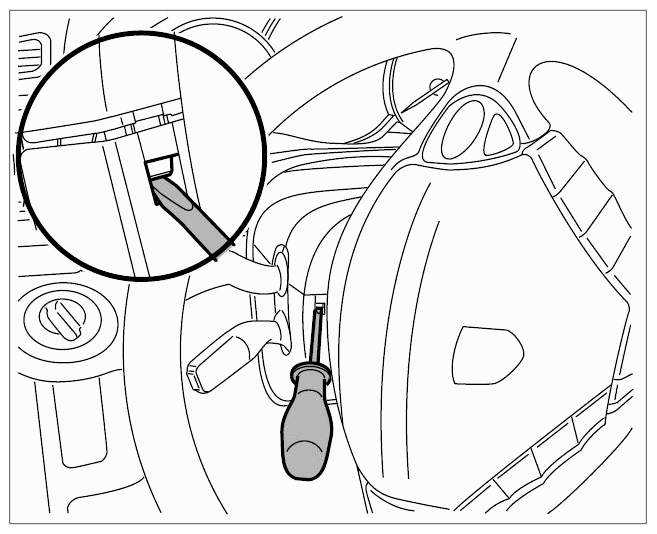

Angle the steering wheel 90° to the left, press the left → Fig 1 locking lug forward with a screwdriver and unclip it.

Fig 1: Removing Steering Column Trim
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Angle the steering wheel 90° to the right, press the right locking lug forward with a screwdriver and unclip it.

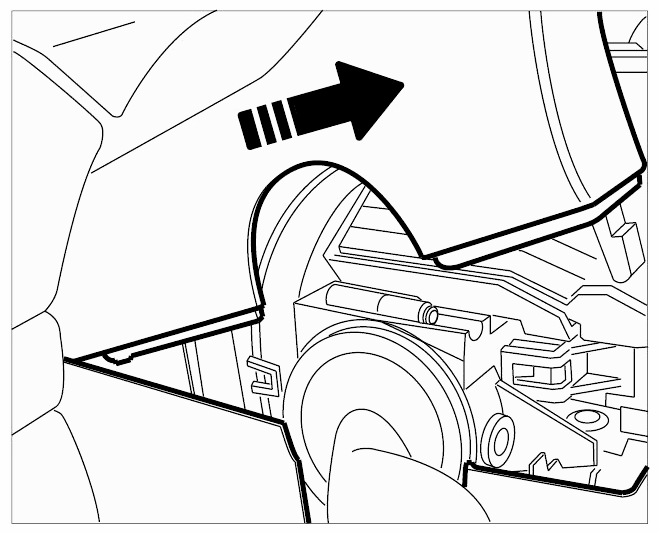

Pull the top steering column trim back and tip it up slightly so that the steering column trim can be removed from the front guide.

Fig 2: Pulling Top Steering Column Trim
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

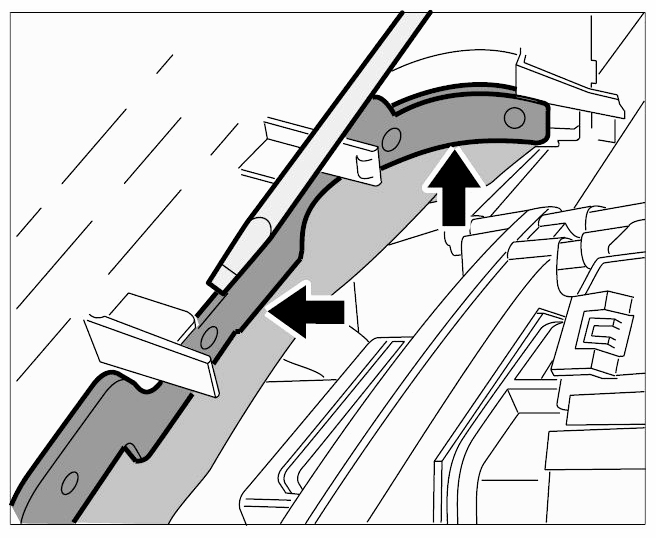

Use a small screwdriver to unclip the retaining strip for the gap cover (leather). Remove the top steering column trim.

Fig 3: Removing Retaining Strip For Gap Cover Using Small Screwdriver
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove the steering column adjusting lever.

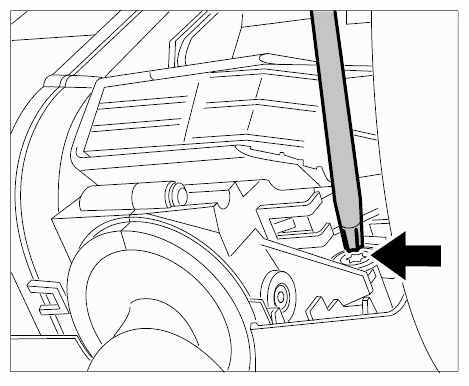

Remove the two fastening screws from the lower steering column trim at the left and right next to the steering column.

Fig 4: Removing Two Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

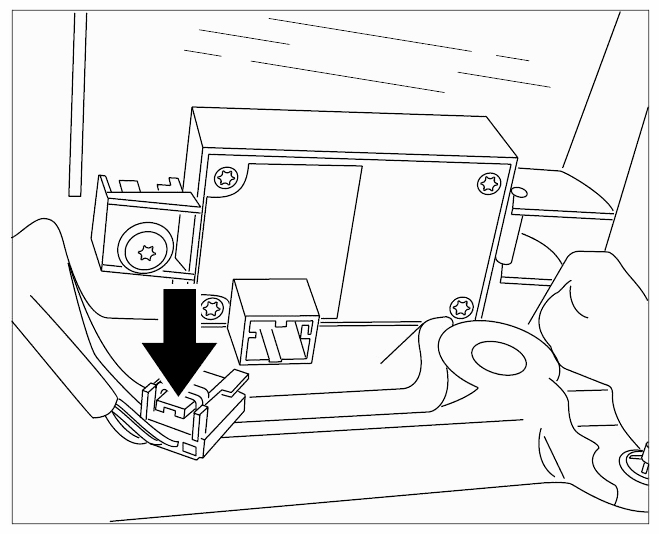

- On vehicles with an electrically adjustable steering column, unlock and pull off the connector of the steering column actuator .

  Fig 5: Locating Steering Column Actuator Connector
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove the trim carefully downwards.
