Installing Steering Column Trim

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Install in reverse order.
After installation, check the gap and seating of the steering column trim and adjust as required.

Fit lower trim panel. If necessary, clip in the connector for the electric steering column actuator. Fit the lower trim in the correct position using the fastening screws.

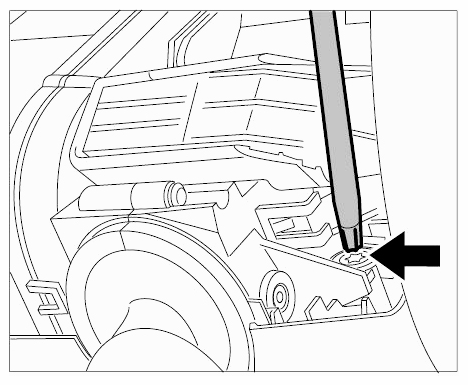

Fig 1: Fitting Lower Trim In Correct Position Using Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Clip in the retaining strip for the gap cover, starting from one side.
Fit the upper cover at the instrument cluster and make sure that the locking lugs clip in correctly on the steering wheel side.
Install the steering column adjusting lever.
