Removing Fan Control: Notes

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Voltage peaks

Risk of damage to load or to the control unit

→ Remove the ignition key and switch off load before disconnecting or removing load.

Information

If the fan control is replaced for model year 2003 and 2004 vehicles, the air-conditioning system regulator must also be replaced.

Information

The fan control is located in the air-conditioning unit beside the fan.

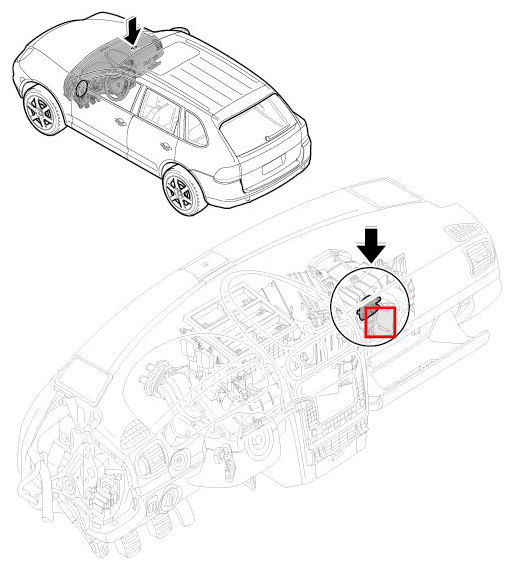

Fig 1: Overview Of Fan Control
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

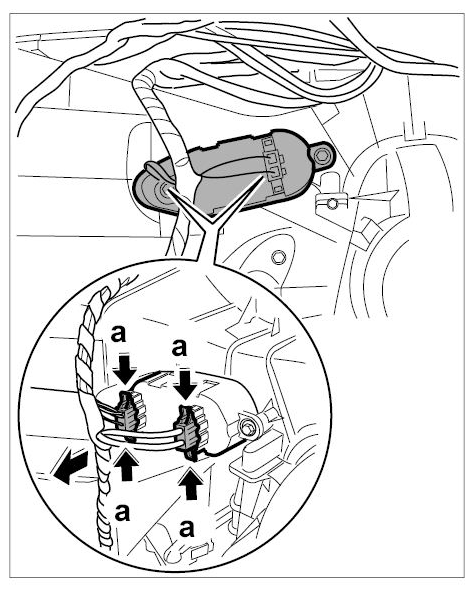

Press the latch on both connectors -Pfeile a- and remove the connectors from the fan control.

Fig 2: Pulling Off Connectors
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

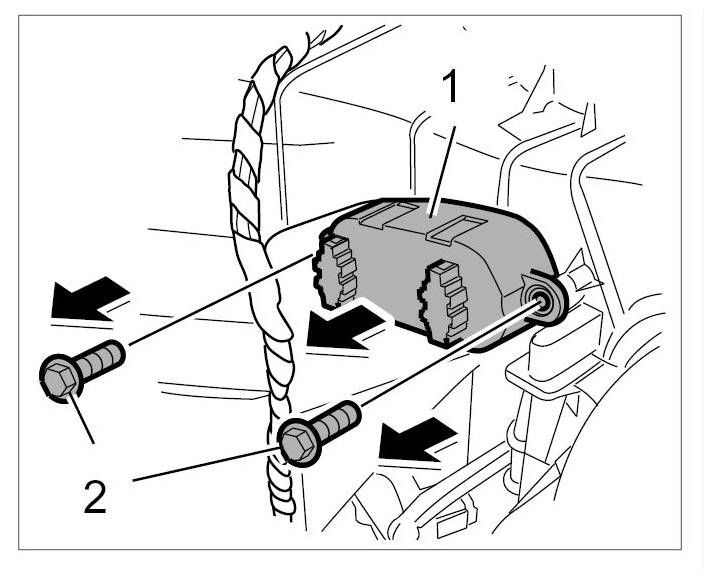

Unscrew the two fastening screws -2- and remove the fan control -1- .

Fig 3: Removing Fan Control
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
