Installing Fan Control

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

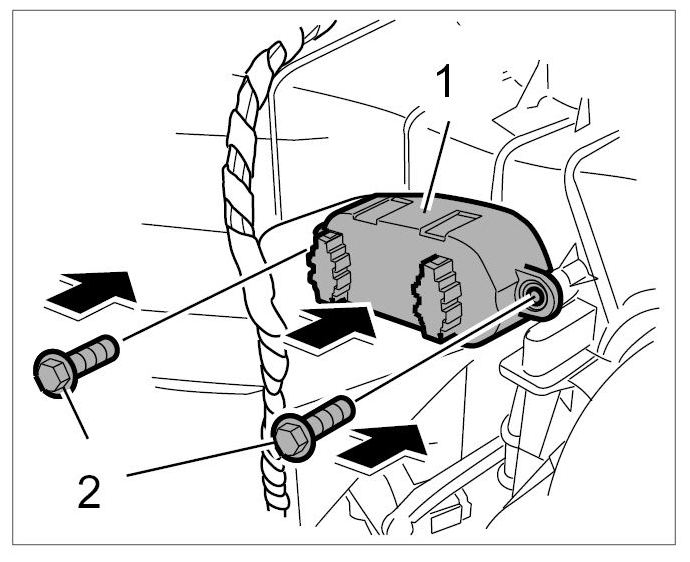

Insert fan control -1- into the air-conditioning unit and screw down with the two fastening screw -2- .

Fig 1: Installing Fan Control
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

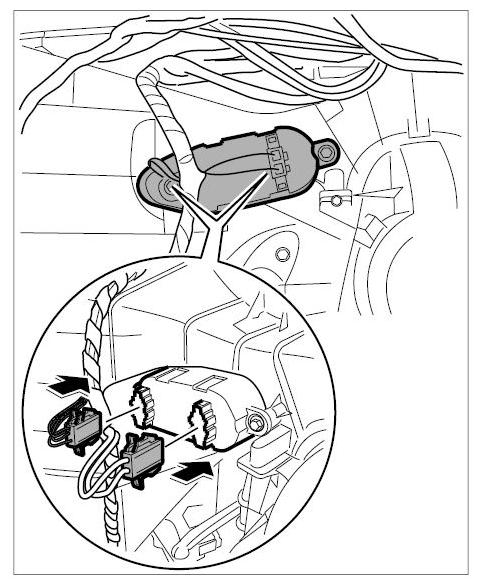

Insert both electrical connectors into the fan control until they are felt to engage.

Fig 2: Inserting Electrical Connectors
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Switch on ignition and check fan control.
