Removing Desiccator

→ Avoid contact with refrigerant.

→ Wear personal protective gear.

→ Observe the safety regulations for working on air-conditioned vehicles and dealing with refrigerant.

→ Observe the safety regulations for extraction and filling systems.

→ Observe the instructions for repairing air conditioning systems and storing spare parts.

Information

• The dryer is in the capacitor, on the right-hand side.
• Two people are needed to remove the dryer.

1. Remove air cleaner cover. → Removing Air Cleaner Housing .

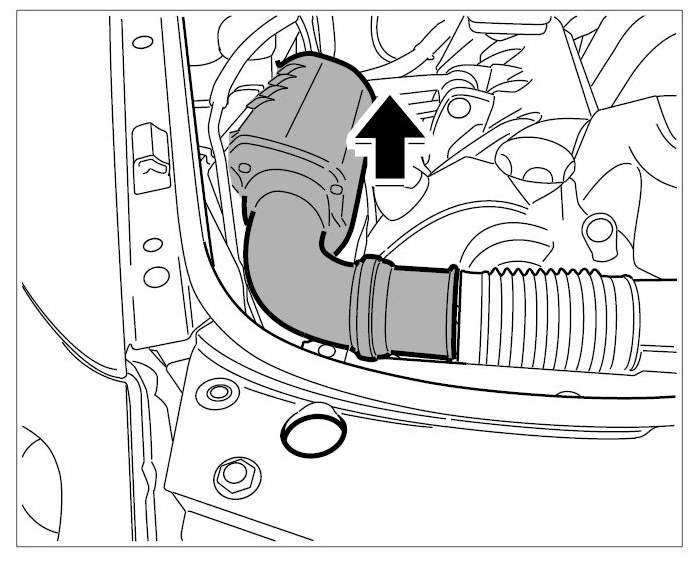

   Fig 1: Removing Air Filter Lid

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Unscrew rubber sleeve on the condenser -arrow A-  and pull it up and off -arrow B-  .

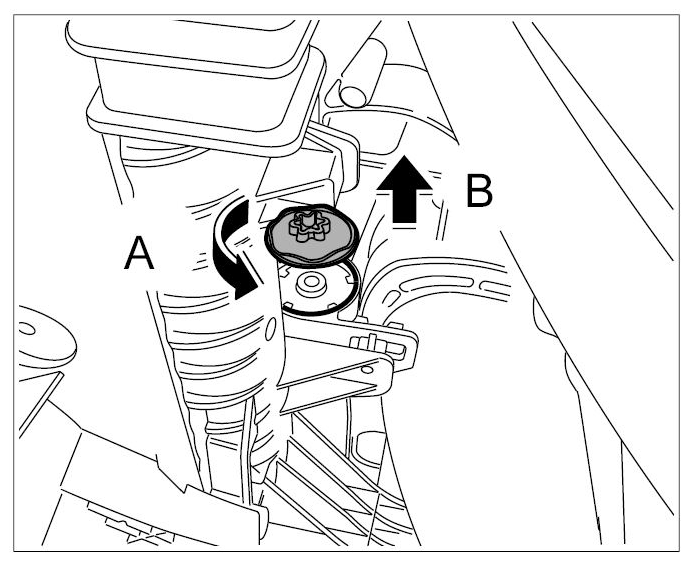

   Fig 2: Removing Rubber Grommet On Condenser

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. -A-  Using a slide hammer kit Nr.168  , push plug down and turn Seeger ring until accessible from air filter.

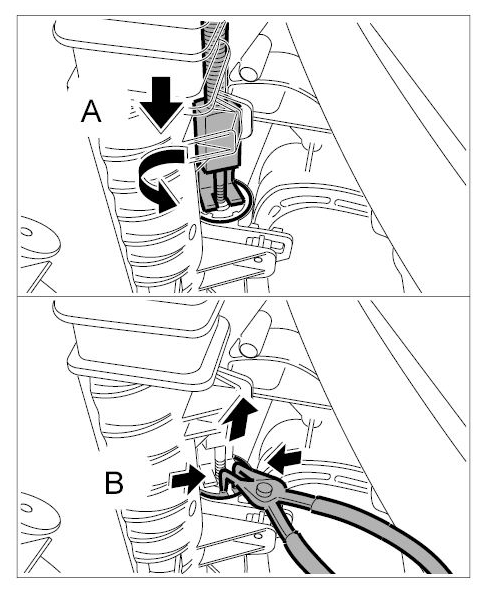

   Fig 3: Removing Seeger Ring

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Using Seeger ring pliers Nr.70  remove Seeger ring -B-  .
5. Screw hexagonal screw into plug and pull plug out in upward direction using slide hammer set Nr.168.

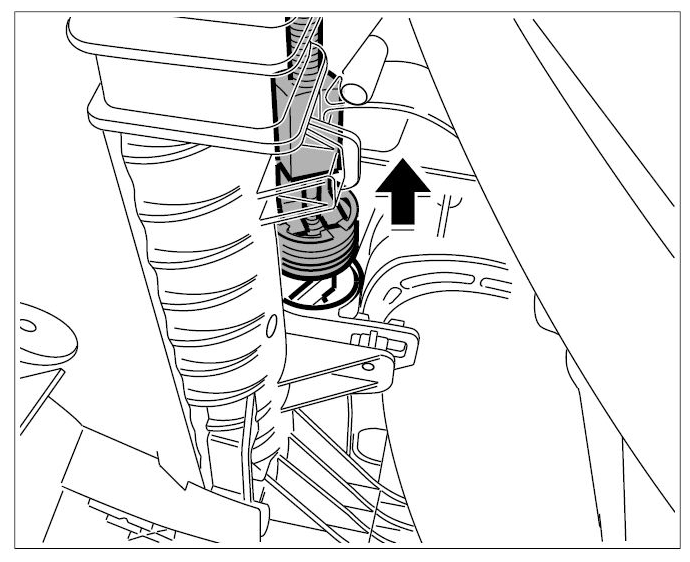

   Fig 4: Pulling Out Plug In Upward Direction

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Lift dryer out in upward direction.

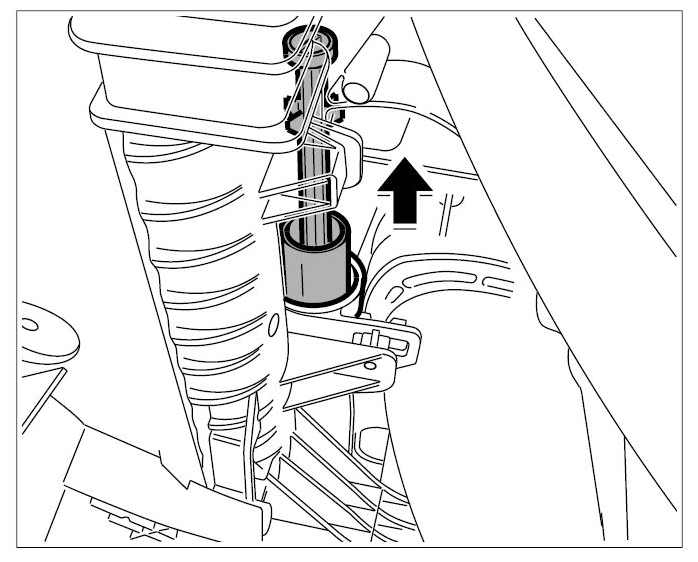

   Fig 5: Lifting Dryer Out In Upward Direction

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
