Installing Desiccator

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The dryer must be replaced if the system suffers from operational faults (e.g. accident damage or air-conditioning system depressurised)!
Used refrigerant oil extracted from a previously run A/C unit must not be re-used!
Two people are needed to install the dryer.

Replace O-ring on plug and wet with refrigerant oil.

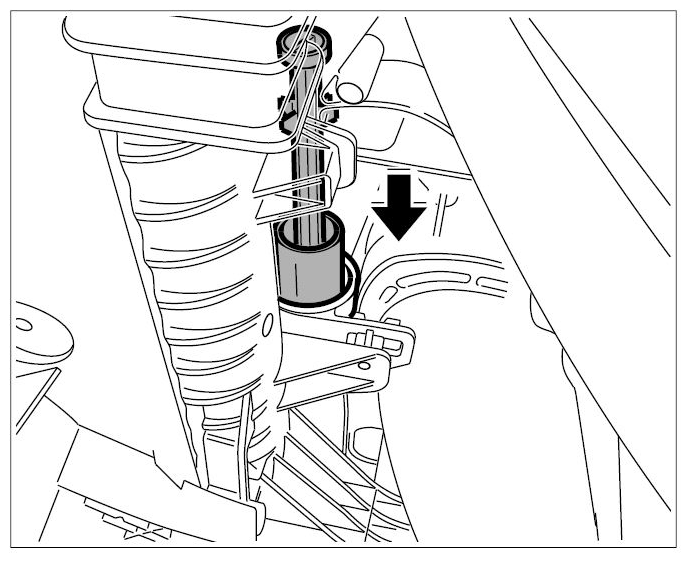

Push dryer into condenser.

Fig 1: Pushing Dryer Into Condenser
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

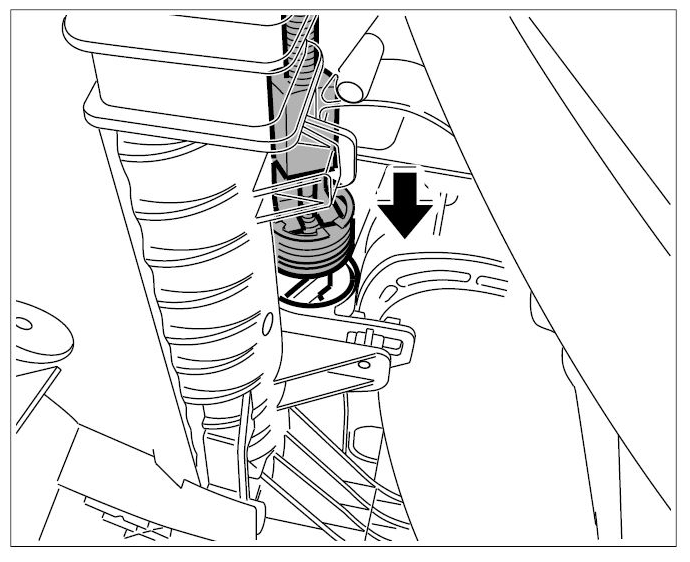

Position plug and push down with a slide hammer set Nr.168 .

Fig 2: Positioning And Pushing Down Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

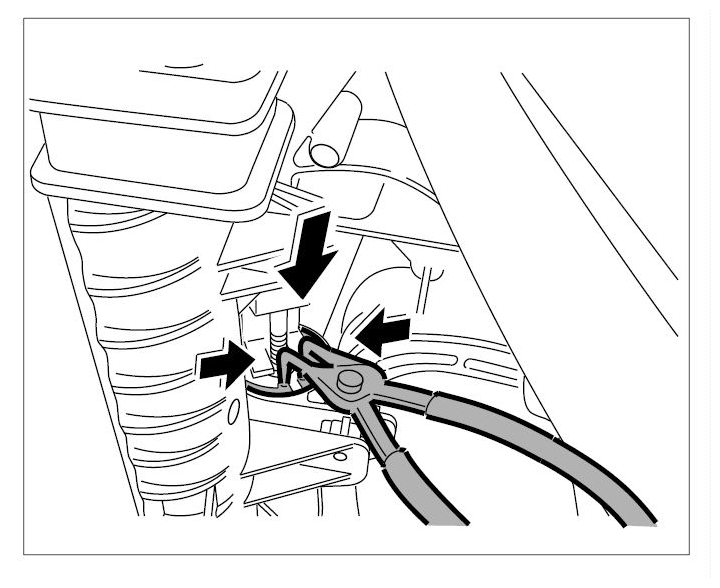

Fit the circlip using the circlip pliers Nr.70 .

Fig 3: Installing Snap Ring
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

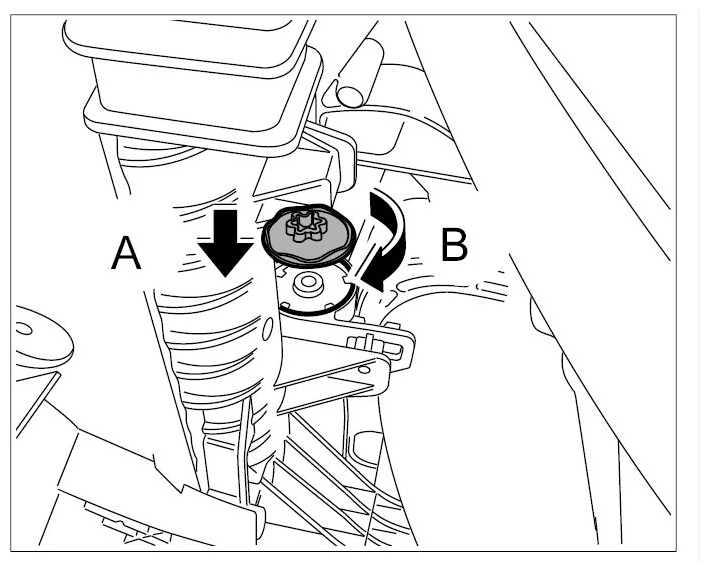

Place rubber cap on the stopper -arrow A- and screw it in -arrow B- .

Fig 4: Placing Rubber Stopper On Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install air filter lid. → Installing Air Cleaner Housing
Determine the quantity of the refrigerant oil and fill up again with refrigerant oil (volume removed by suction + 20 cm³ ).
