Removing Fan For Condenser

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The big fan is for the engine cooling, the small fan is for the air conditioning
The sheetmetal clips on the fans are for balancing the fans and must not be pulled off.

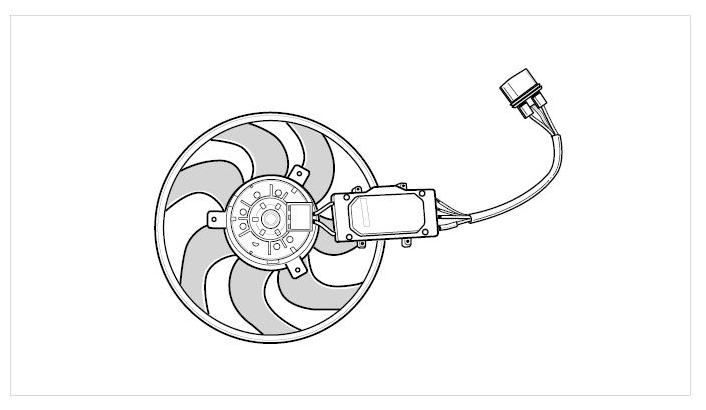

Fig 1: Overview Of Fan For Condenser
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unclip the electric plug on the radiator frame.

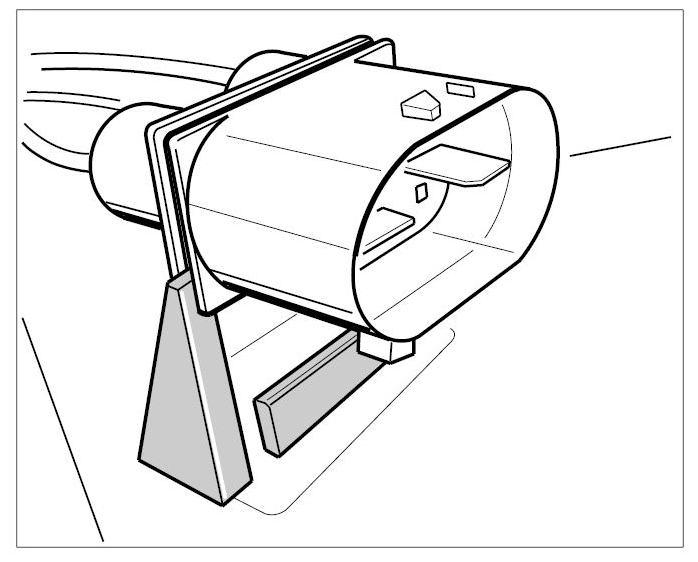

Fig 2: Identifying Radiator Electric Plug Frame
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Undo the 3 fastening screws on fan and pull fan down and out.

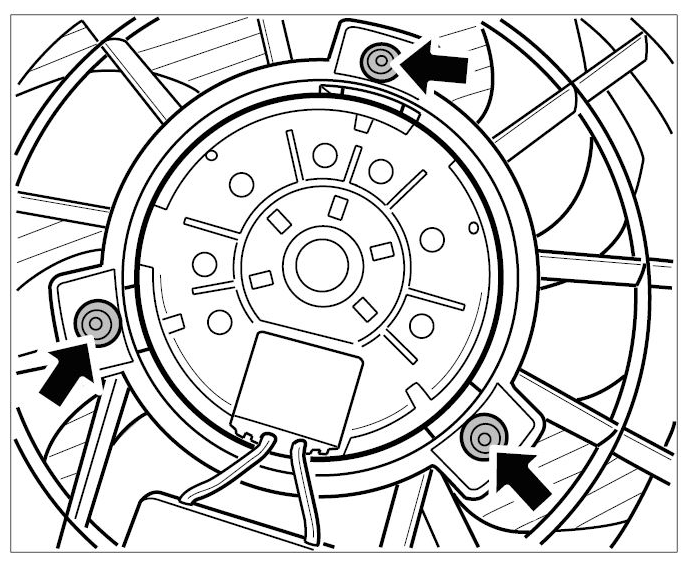

Fig 3: Locating Condenser Fan Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Follow up the fan cable and fan control module during removal.

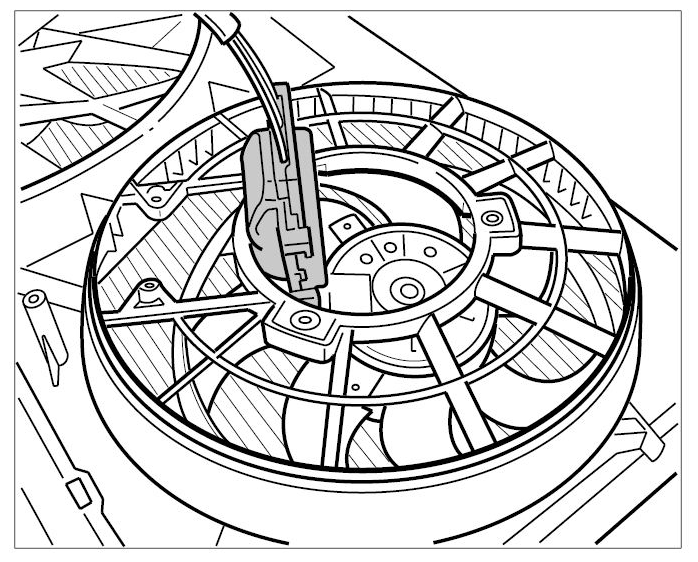

Fig 4: Identifying Fan Cable And Control Module
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
