Installing Fan For Condenser

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Push fan cable with control module from underneath through the radiator frame.

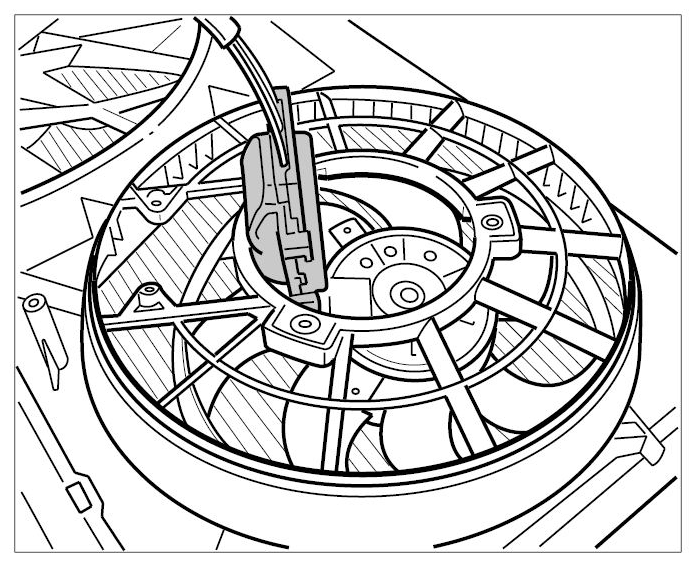

Fig 1: Identifying Fan Cable With Control Module
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tighten the three fastening screws. → Tightening torque: 3 ftlb.

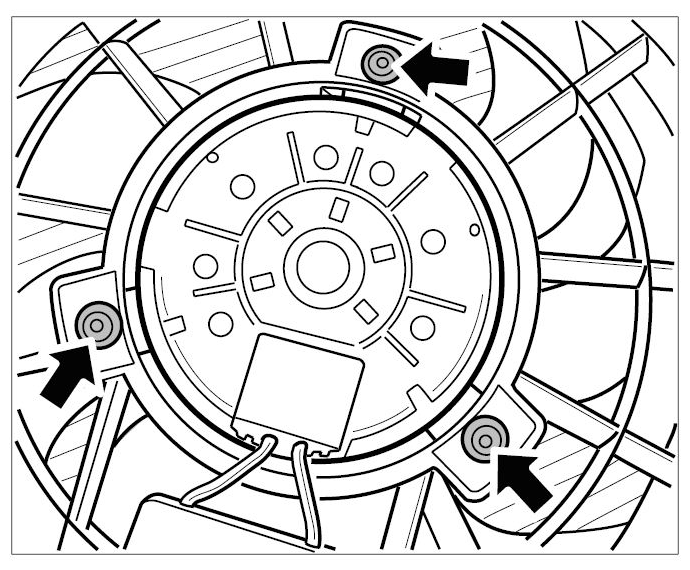

Fig 2: Locating Condenser Fan Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Route cables correctly and clip electric plug into the frame at the top.

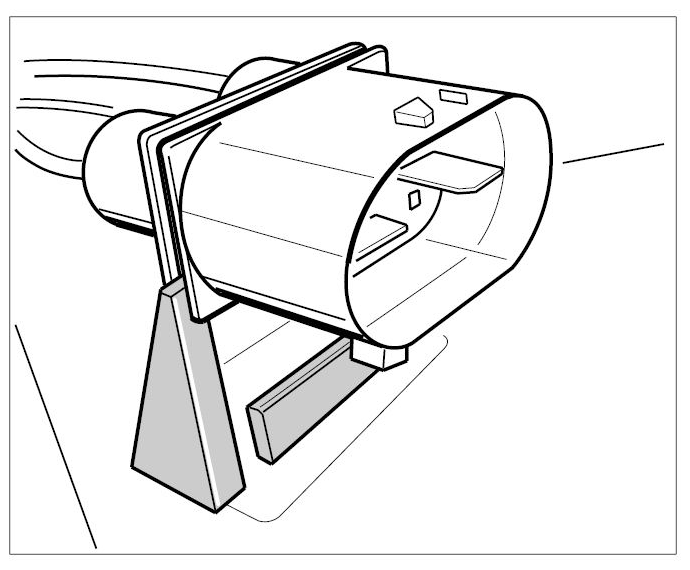

Fig 3: Identifying Radiator Electric Plug Frame
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
