Installing The Condenser

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Carefully pull the ATF radiator -3- to the front, making sure that the lines do not become deformed.
1. Coolant radiator
2. Condenser
3. ATF cooler
4. Power steering radiator

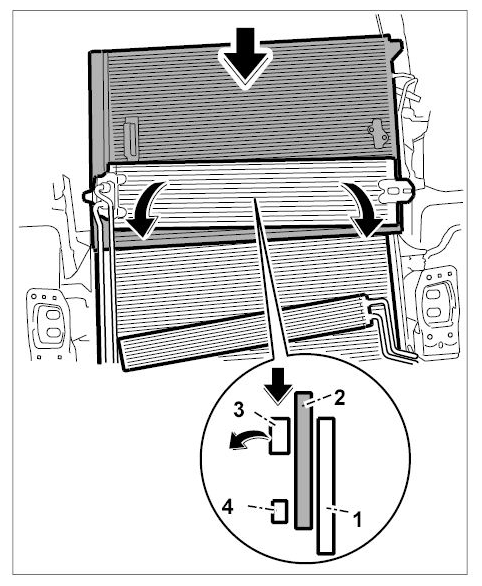

Fig 1: Removing Condenser Upwards
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Carefully insert the condenser -2- between the radiators -1, 3, 4- , making sure not to damage the other radiator on the edges and corners of the condenser.
Engage the condenser and the ATF cooler in the mounts and clip in both retaining clips on the condenser and on the coolant radiator.

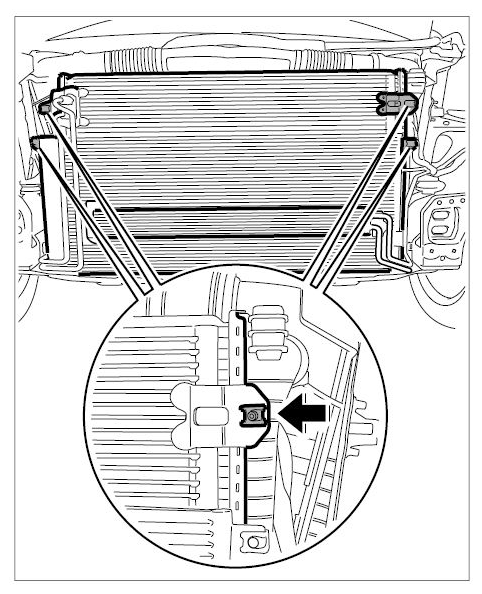

Fig 2: Locking Atf Cooler And Condenser Clip
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert the power steering radiator in the support on the condenser -Arrow A- and engage the lines in the support -Arrow B- .

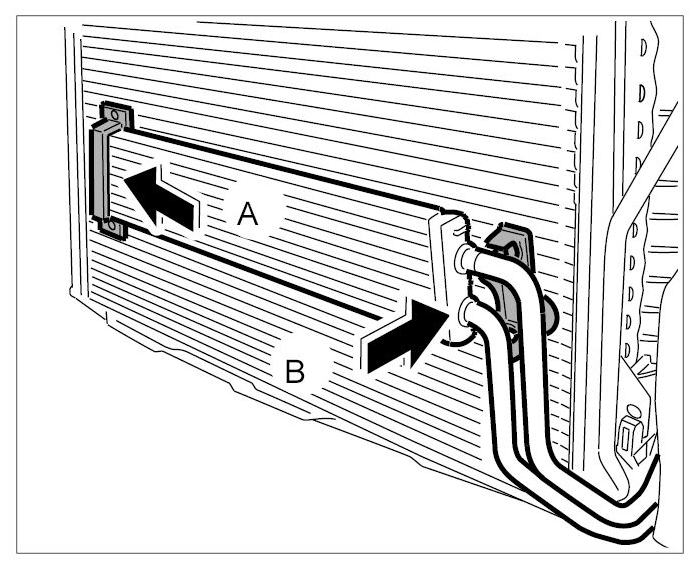

Fig 3: Inserting Power Steering Radiator
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw in the fastening screw -Arrow D- (left direction of travel) for securing power steering radiator lines to coolant radiator. → Tightening torque: 6 ftlb..

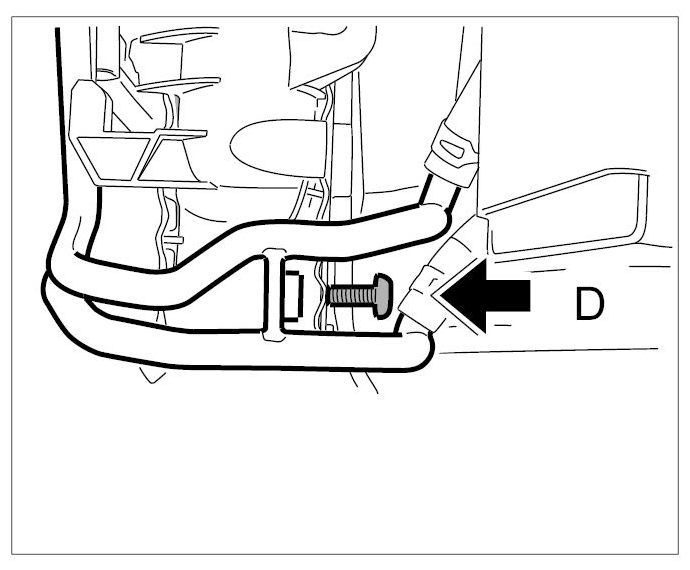

Fig 4: Tightening Power Steering Radiator Lines Fastening Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw in both fastening screws -C- for securing condenser to the coolant radiator (left direction of travel). → Tightening torque: 6 ftlb..

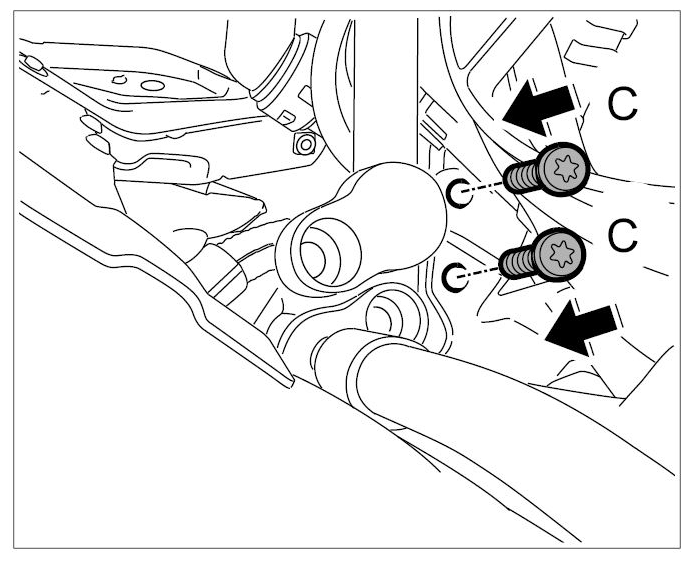

Fig 5: Screwing Condenser Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Position the refrigerant lines and attach them to the condenser with the fastening screws -A and B- . → Tightening torque: 9 ftlb.

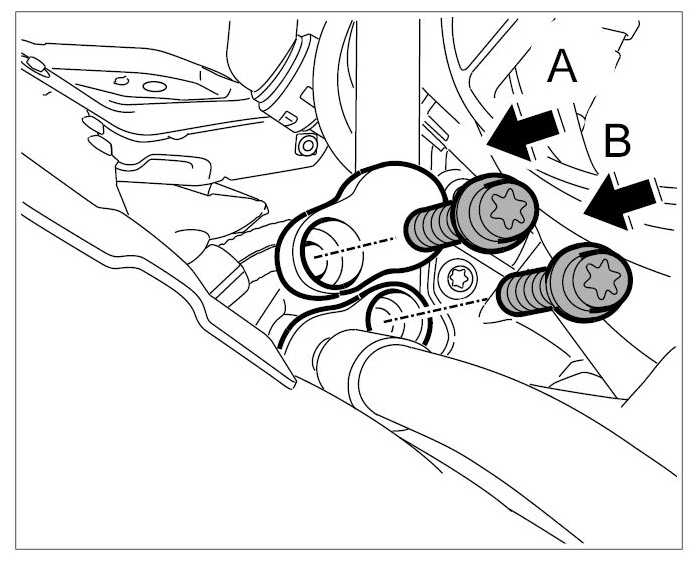

Fig 6: Tightening Air-Conditioning Lines Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
