WM 874419 Removing And Installing Condenser-Evaporator Line (All Models): Information

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Removal and installation is described for a Turbo vehicle. There is additional hosing on the graphics which is not installed on the naturally-aspirated engine .

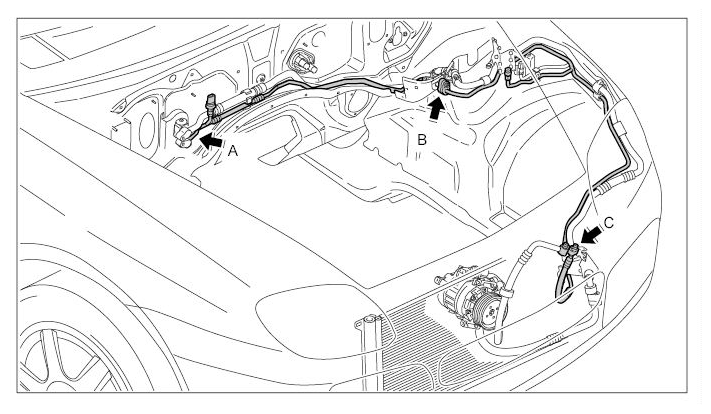

Fig 1: Overview Of Line On Condenser - Evaporator
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. A - B - Line from expansion valve to engine compartment connector
2. B - C - Line from engine compartment connector to condenser
