Removing The Compressor-Condenser Line (A - B)

→ Avoid contact with refrigerant.

→ Wear personal protective gear.

→ Observe the safety regulations for working on air-conditioned vehicles and dealing with refrigerant.

→ Observe the safety regulations for extraction and filling systems.

→ Observe the instructions for repairing air conditioning systems and storing spare parts.

Information

• Removal and installation is described for a Turbo vehicle. There is additional hosing on the graphics which is not installed on the naturally-aspirated engine.

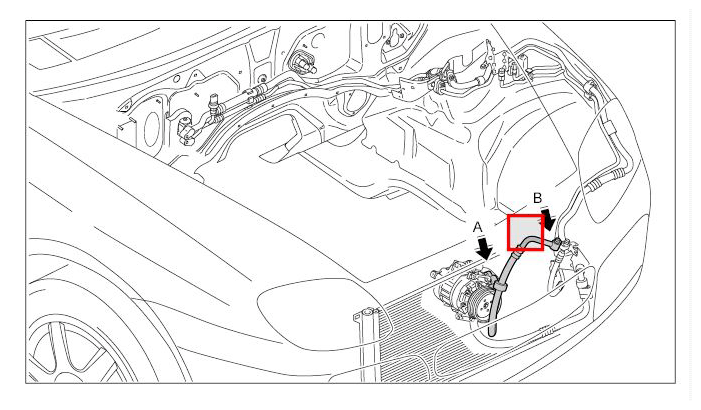

Fig 1: Overview Of Line On Compressor - Condenser

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Remove refrigerant by suction. → Draining And Filling In Refrigerant
2. Unscrew fastening screw on the refrigerant line -A-  for the compressor at the condenser.

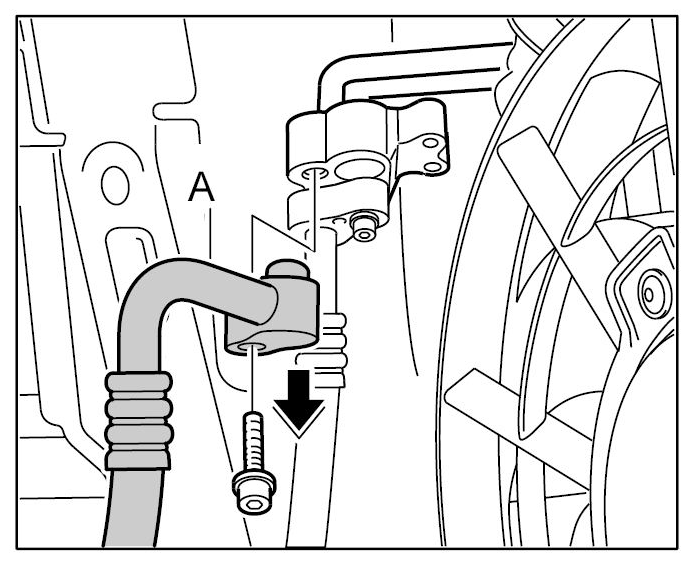

   Fig 2: Unscrewing Fastening Screw For Refrigerant Line On Condenser

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Disconnect the refrigerant line.
4. Unscrew fastening screw for the refrigerant line -A-  on the air conditioning compressor.

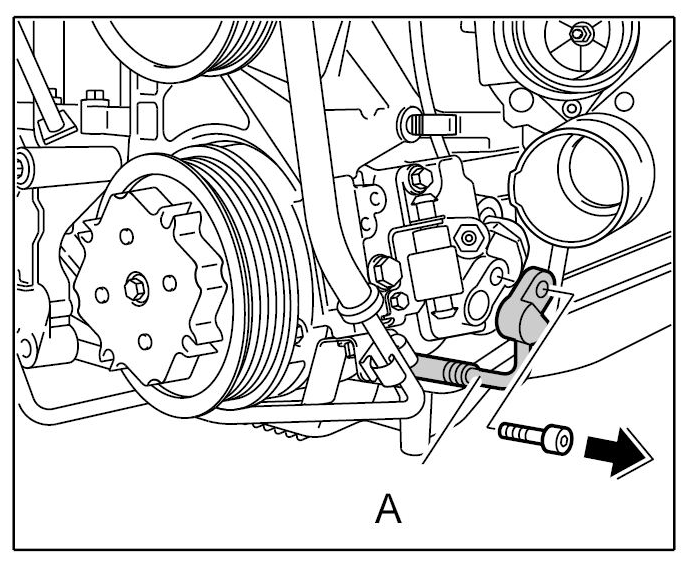

   Fig 3: Unscrewing Fastening Screw For Refrigerant Line On Compressor

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Pull out the refrigerant line from the compressor and remove downwards from the engine area.
