Installing The Compressor-Condenser Line (A - B)

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Always replace sealing rings of the refrigerant lines.
Spray the sealing rings with refrigerant oil before fitting.

Insert the refrigerant line from below into the engine area onto the air conditioning compressor.

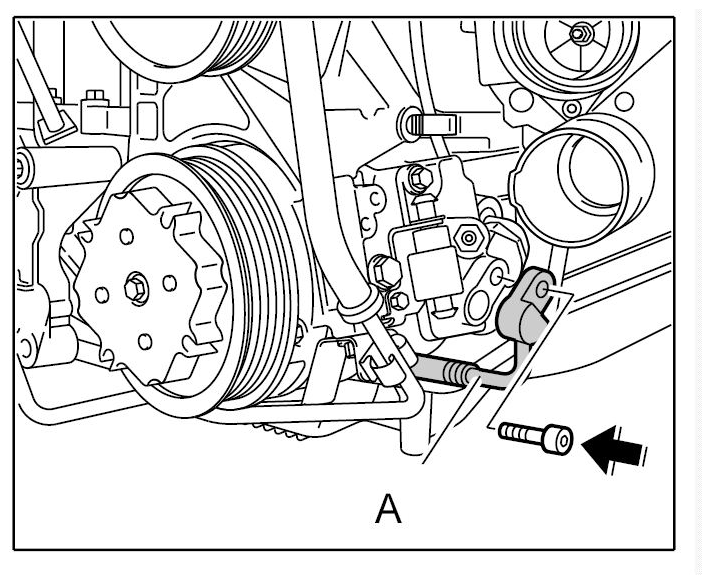

Fig 1: Installing Refrigerant Line Fastening Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw in the fastening screw of the refrigerant line -A- on the compressor and screw down. → Tightening torque: 9 ftlb.
Plug in the refrigerant line -A- from the compressor on the condenser - do not tilt - and screw down with the fastening screw. → Tightening torque: 9 ftlb.

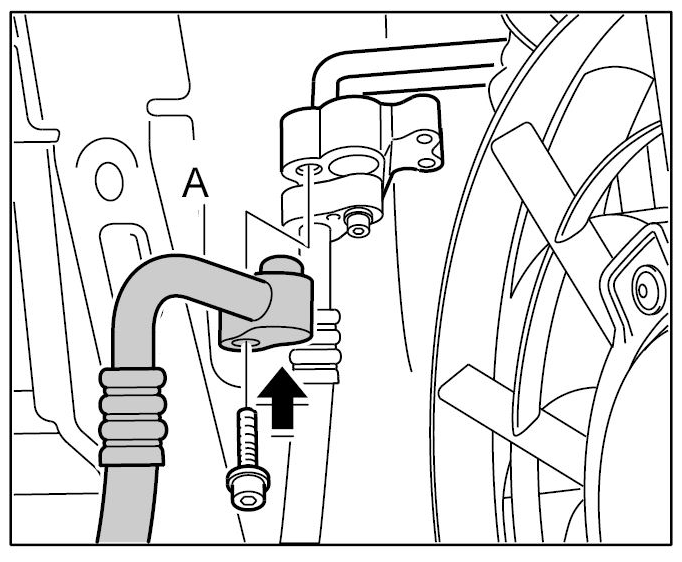

Fig 2: Screwing Refrigerant Line
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
