Removing Air-Quality Sensor

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The air quality sensor is located in the direction of travel tucked under the cowl panel cover on the left side.

Lift cover -arrow A- , release the sensor -arrow B- and pull down from the mount - cowl panel cover -arrow C- .

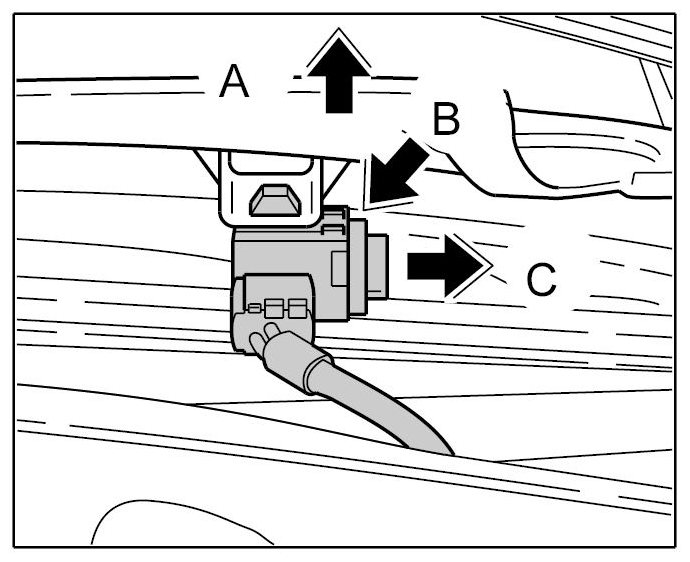

Fig 1: Removing Air Quality Sensor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release plug -a- and remove from sensor.

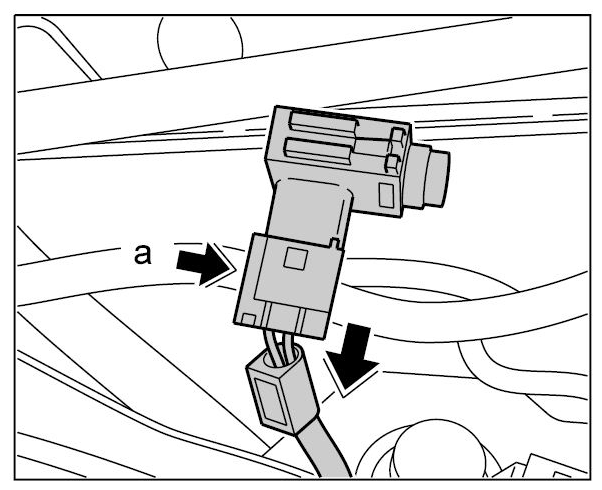

Fig 2: Pulling Off Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove air quality sensor.
