Installing Air-Quality Sensor

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

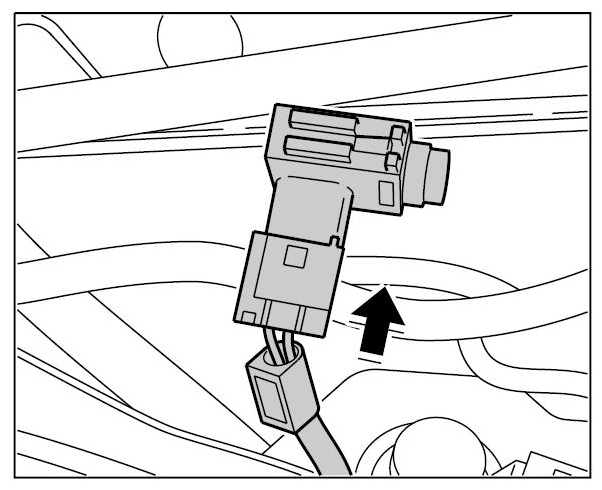

Push plug onto air quality sensor until it is felt to engage.

Fig 1: Plugging In Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

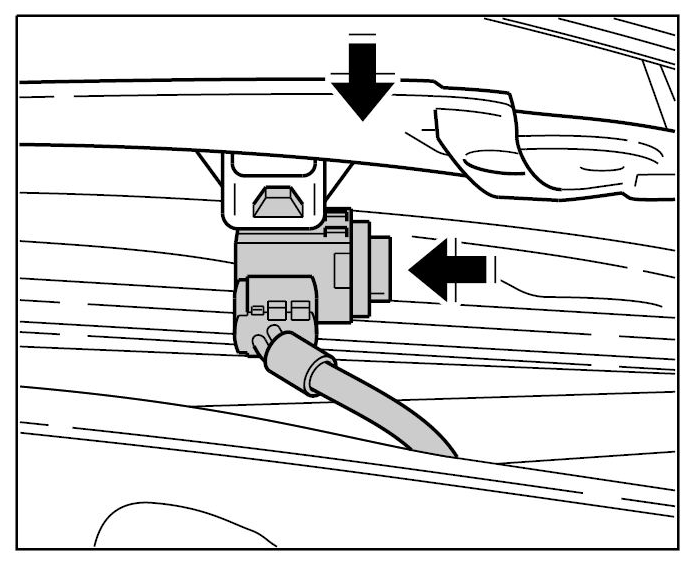

Push sensor onto mount - cowl panel cover - until the sensor clicks into place. Check it is secure.

Fig 2: Installing Air Quality Sensor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
