Removing Servo Motor

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The air conditioning servo motor -B- - outer unit aimed at persons on left - is located on the left air conditioning unit.
The air conditioning servo motor -C- - centre unit aimed at persons on left - is located on the left air conditioning unit.
The individual servo motors -B and C- are not installed on both sides of the air conditioning unit in vehicles with a manual air conditioner. These are replaced by just one air conditioner servo motor, which is installed on the left side of the air conditioning unit at the servo motor position -B- .
Switch ignition off and remove ignition key before starting work.

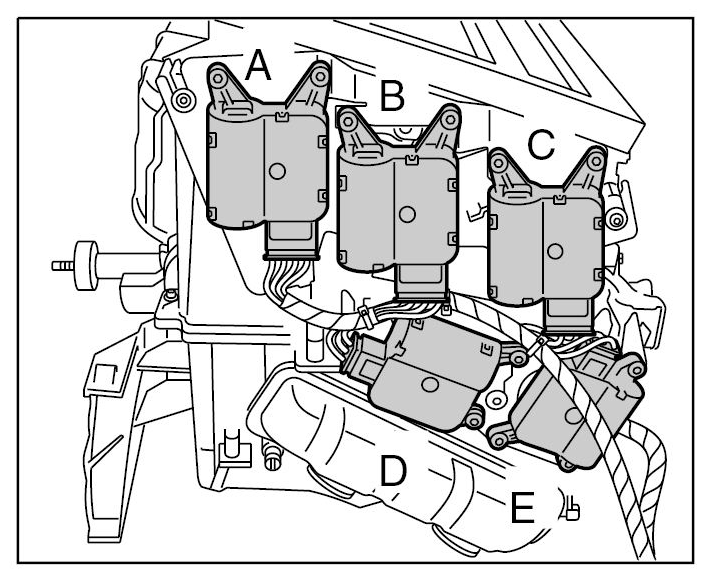

Fig 1: Identifying Servo Motors

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Servo motor for defrost distributor flap
Servo motor for distributor flap for side vents
Servo motor for distributor flap for central vents
Servo motor for distributor flap for footwell outlet vent
Servo motor for temperature mixing flap (left side)

Unscrew the fastening screws -Arrows 1- on the retainer plate with the motors -D and E- .

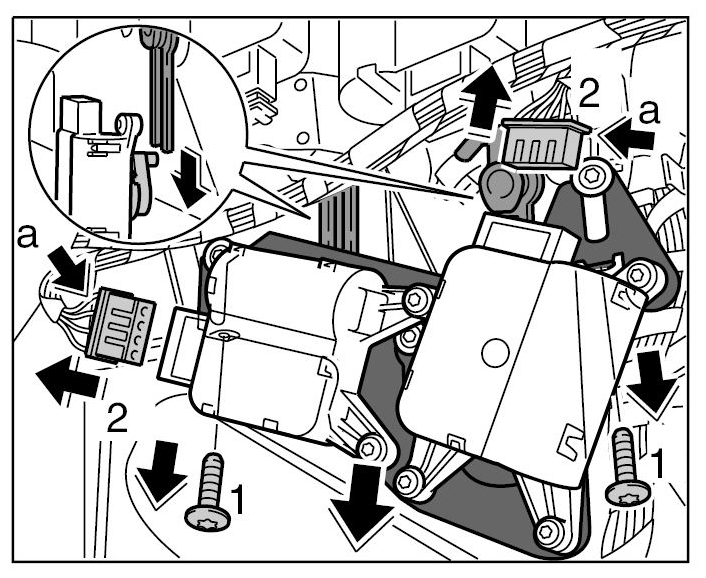

Fig 2: Loosening Retainer Plate Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press the electric connectors -Arrows 2- (-Arrows a- ) and pull off the connectors.
Pull retainer plate with the motors -D and E- downwards out of the guide.
Unclip wire harness on the left heat exchanger cover.

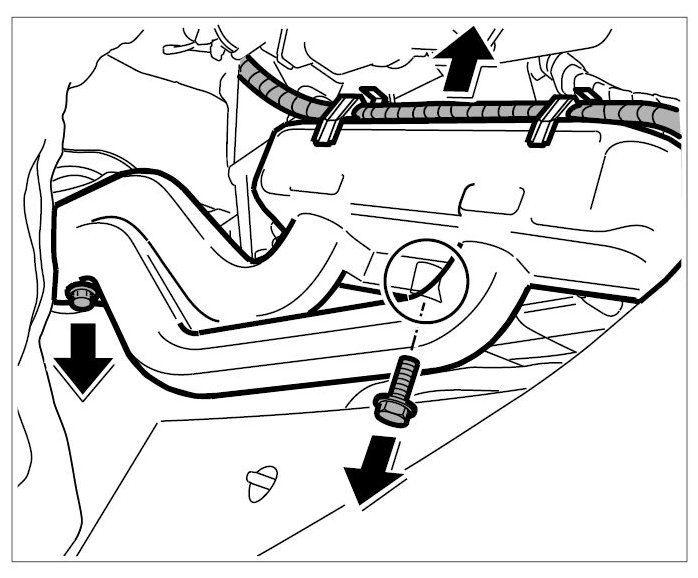

Fig 3: Unclipping Left Heat Exchanger Cover Wire Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew the two fastening screws on the left heat exchanger cover and unclip the cover.
Unscrew the two fastening screws -Arrows 1- on the top retainer plate with the servo motors -A, B and C- .

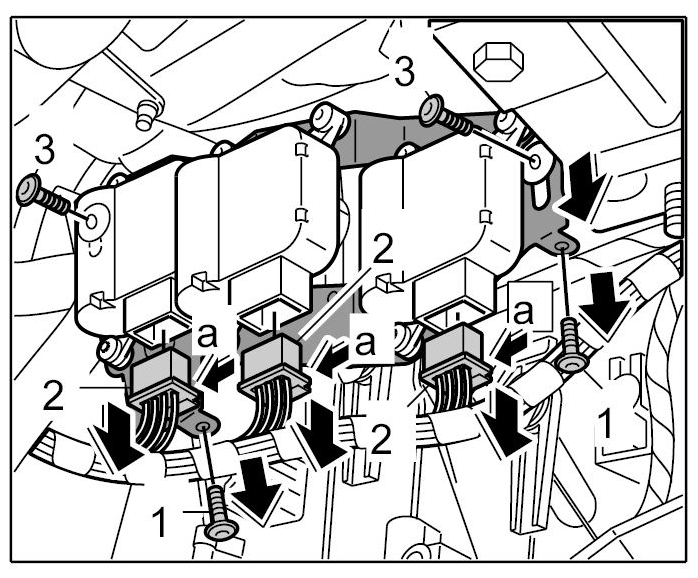

Fig 4: Loosening Top Retainer Plate Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press in the connector -2- (-a- ) and pull plug connection apart.
Pull retainer plate out in a downward direction. Loosen the guide screws -3- on the retainer plate if necessary.
Unscrew fastening screws -Arrows A- and remove servo motor.

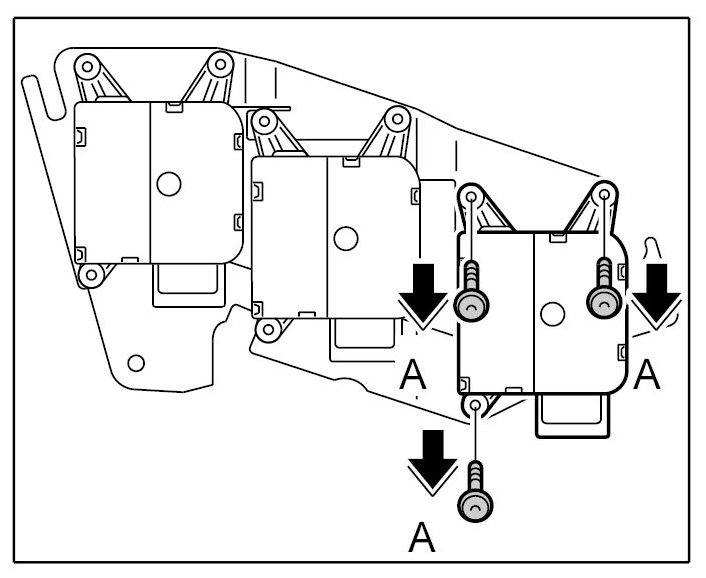

Fig 5: Unscrewing Air Conditioning Servo Motor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew fastening screws -Arrows A- and remove servo motor.

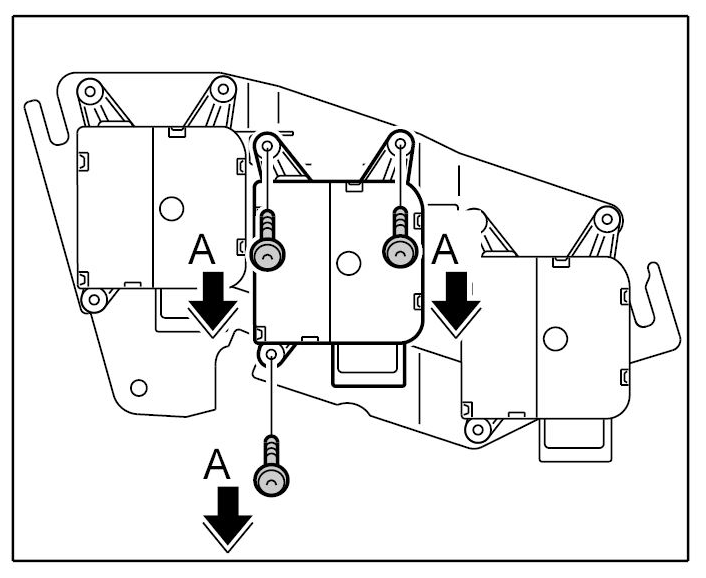

Fig 6: Unscrewing Air Conditioning Servo Motor - Centre Unit Aimed At Persons On Left
