Installing Sun Sensor

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Press sensor -B- into the holder until the sensor lugs engage.

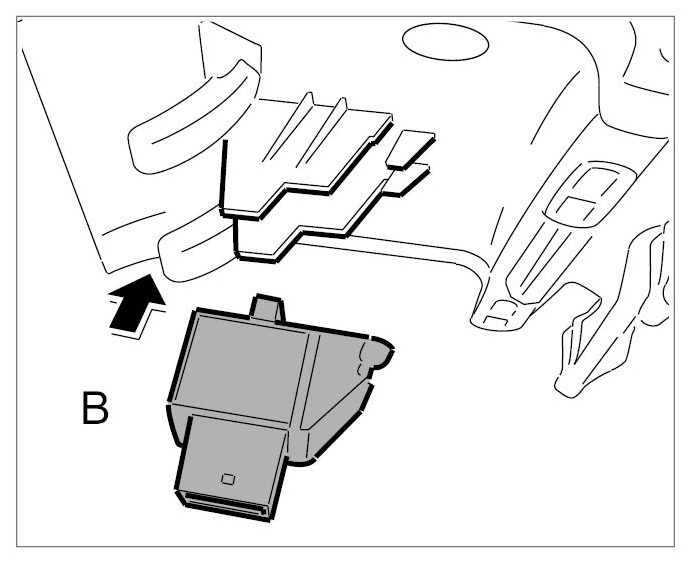

Fig 1: Installing Sun Sensor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Plug in the electrical plug connection.

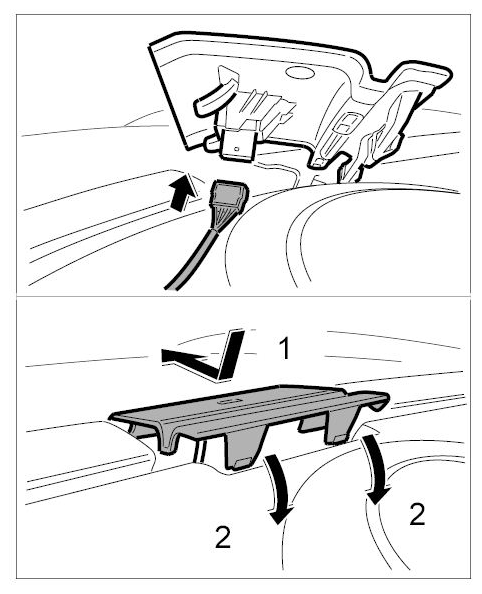

Fig 2: Installing Electrical Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Position cover and clip into dashboard.
