Installing Front Air-Conditioning System Regulator

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

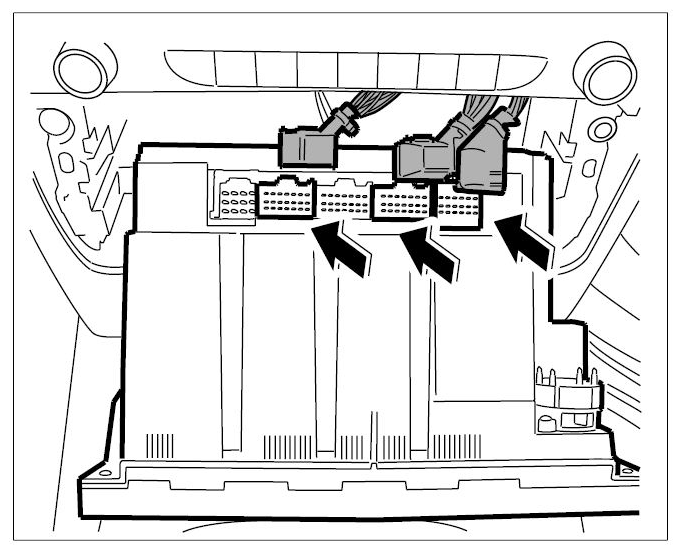

Insert electrical plugs in the air-conditioning control until they are felt to engage.

Fig 1: Inserting Electrical Plugs In Air-Conditioning Control
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

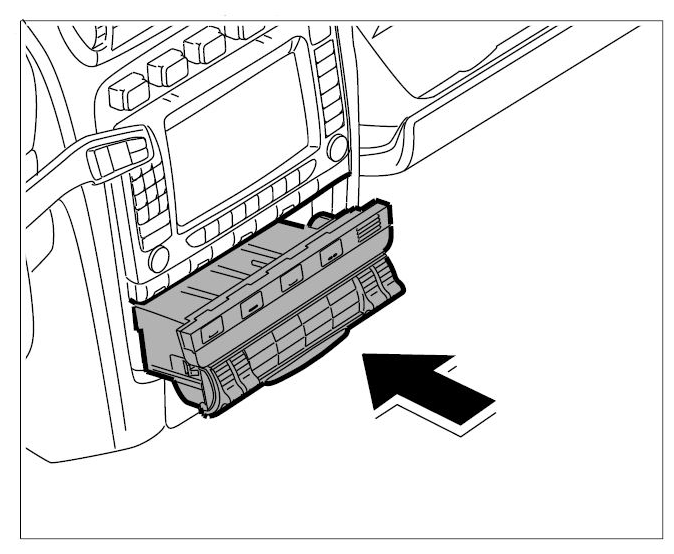

Carefully slide the control into the installation slot, paying attention to the electrical leads. The left and right latches must engage.

Fig 2: Engaging Air-Conditioning Control
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

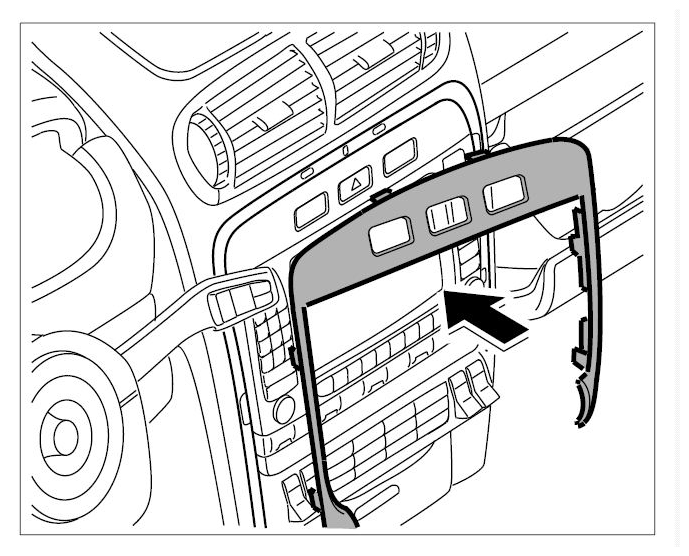

Fit the covering frame and press into place until it is felt to engage.

Fig 3: Fitting Covering Frame
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
