Tightening Torques
WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

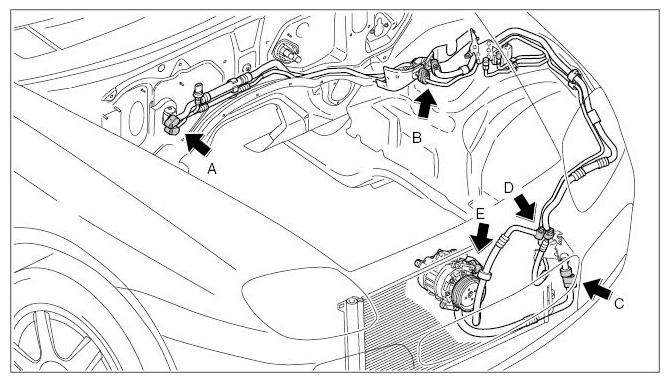

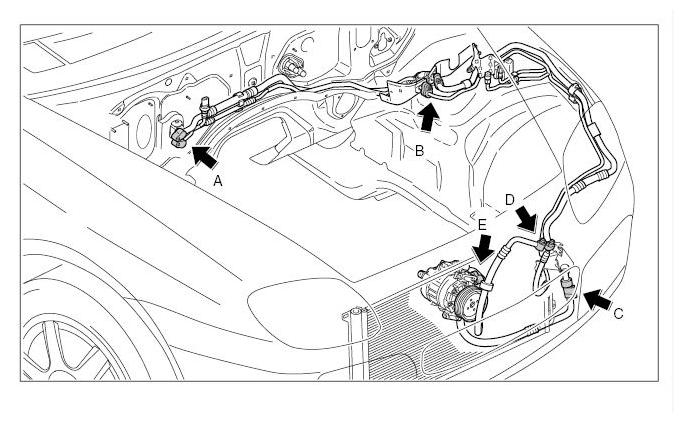

| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| M8 fastening screw for expansion valve | -A- | Tightening torque | 7.5 ftlb. | ||
| M8 fastening screw for refrigerant line | -B and C- | Tightening torque | 9 ftlb. | ||
| M8 fastening screw for securing refrigerant line to condenser | -D- | Tightening torque | 9 ftlb. | ||
| M8 fastening screw for securing refrigerant line to compressor | -E- | Tightening torque | 15 ftlb. |
Information
- When installing the refrigerant lines, the screw connections and the O-rings must always be wetted with refrigerant oil!
- The extracted refrigerant oil must be disposed of as special-category waste!
