Subsequent Work

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Close the fuel tank. To do this, fit the sheetmetal ring on the connection unit and tighten using wrench T10202. → Tightening torque: 140 Nm (104 ftlb.)

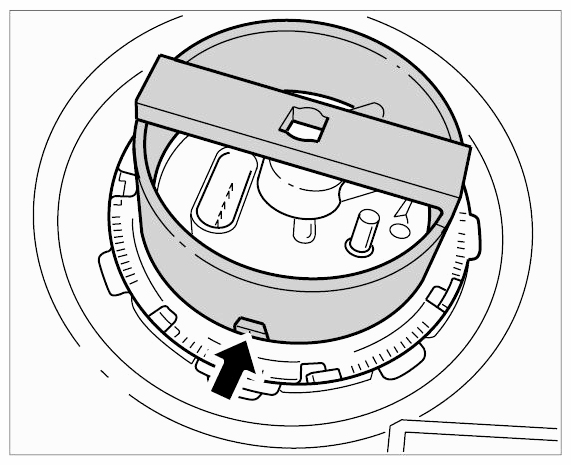

Fig 1: Locating Fuel Tank Cap
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit all connections (fuel lines, ventilation tubes and electric connectors).

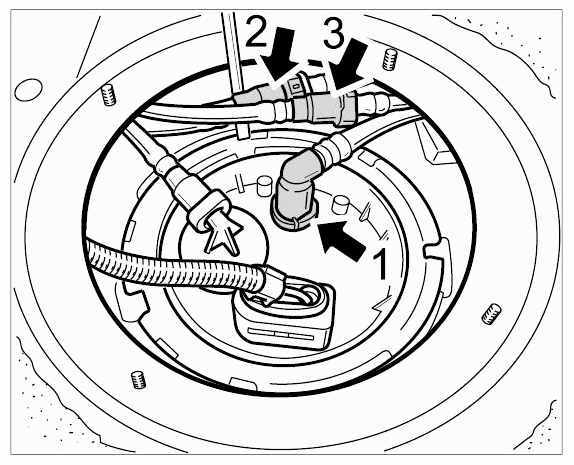

Fig 2: Locating Fuel Lines, Ventilation Tubes And Electric Plugs
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit caps. Then tighten the four fastening nuts on each cap. → Tightening torque: 10 Nm (7.5 ftlb.) Refit carpeted floor and fix in place with double-sided adhesive tape.

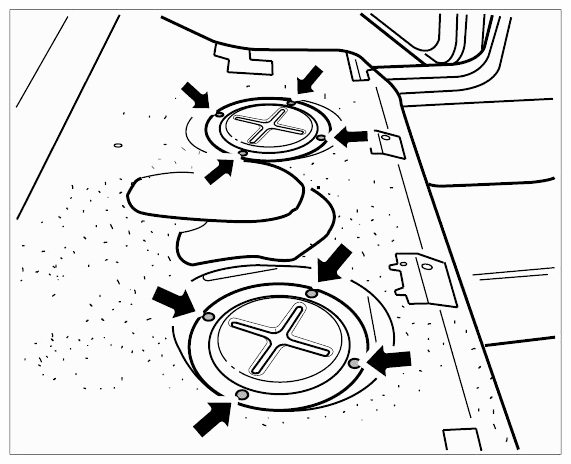

Fig 3: Locating Carpeted Floor Fastening Nuts And Caps
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tighten the mounting plates for the seat-belt buckles. Use three new fastening screws for retaining brackets for seat-belt buckles For information on tightening torques, see → WM 692519 REMOVING AND INSTALLING REAR BELT LOCK

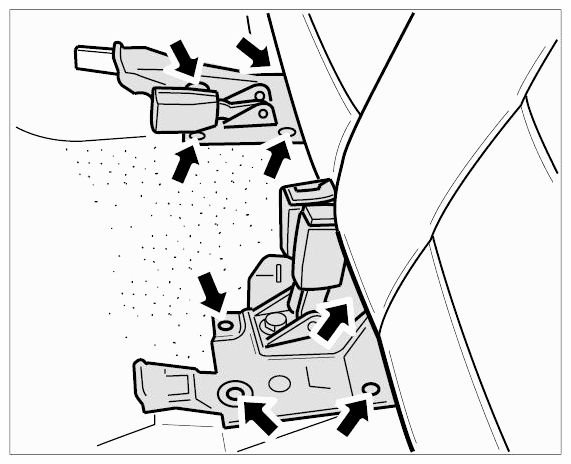

Fig 4: Locating Seat-Belt Buckles Retaining Bracket Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fold rear seat down again.
