Component Overview

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

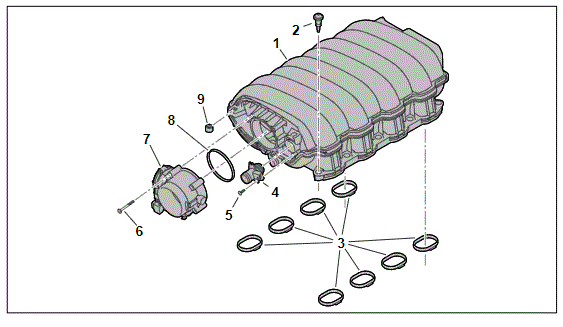

G00596455Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. - Intake module
  2. - Decoupling module
  3. - Seal for intake module
  4. - Heat socket
  5. - Screw, M5 x 16
  6. - Screw, M6 x 50
  7. - Electronic accelerator
  8. - Seal
  9. - Ball socket

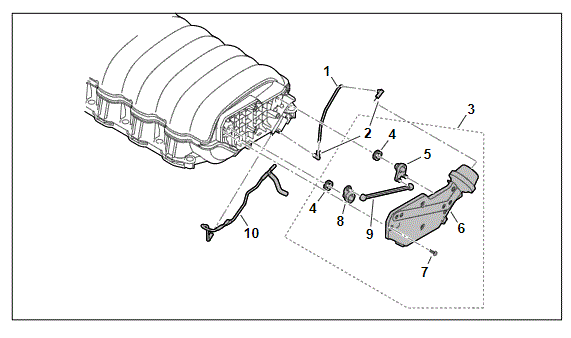

G00596456Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. - Pipe
  2. - Connecting piece
  3. - Variable intake manifold adjuster
  4. - Lip seal
  5. - Connecting element
  6. - Vacuum unit with control lever
  7. - Screw, M5 x 16
  8. - Driver
  9. - Connecting link
  10. - Vacuum line
G00596457Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. - Intake module
  2. - Decoupling module
  3. - Seal for intake module
  4. - Heat socket
  5. - Screw, M5 x 16
  6. - Screw, M6 x 50
  7. - Electronic accelerator
  8. - Seal
  9. - Ball socket
