Component Overview

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

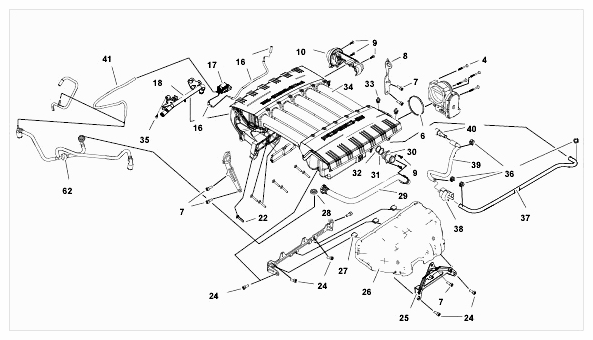

Fig 1: Identifying Intake-Air Distributor

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

4 - Screw → Tightening torque: 7 Nm (5.0 ftlb.)
6 - Sealing ring; check and replace if damaged
7 - Screw → Tightening torque: 23 Nm (17 ftlb.)
8 - Transport eyebolt on exhaust side
9 - Screw
10 - Shift mechanism on variable intake manifold (intake-air distributor)
16 - Vacuum line
17 - Change-over valve
18 - Coolant pipe
22 - Screw → Tightening torque: 8 Nm (6.0 ftlb.)
24 - Screw → Tightening torque: 20 Nm (15 ftlb.)
25 - Support
26 - Heat protection panel (cover plate)
27 - Clamp
28 - Plug (vacuum)
29 - Positive crankcase ventilation
30 - Heat socket
31 - Sealing ring
32 - Sealing ring
33 - Locking pin
34 - Intake-air distributor (intake module)
35 - Coolant pipe screw
36 - Spring band clamp
37 - Tank ventilation (active carbon filter) hose
38 - Tank ventilation (active carbon filter) valve
39 - Tank ventilation (active carbon filter) hose
40 - Rapid-action coupling
41 - Vacuum line
62 - Brake booster vacuum line

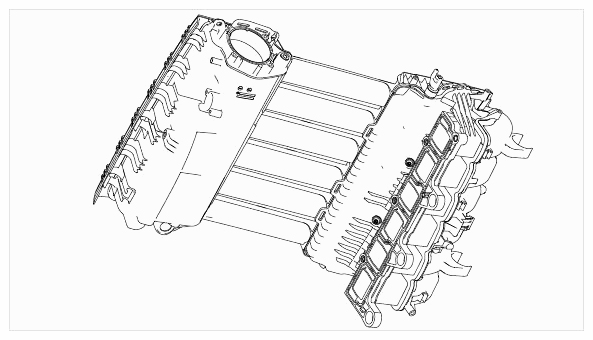

Fig 2: Identifying Intake Distributor (Bottom)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

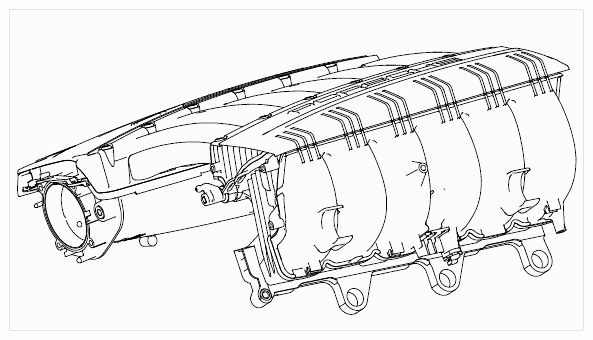

Fig 3: Identifying Intake Distributor (Side)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
