Removing Hot-Film Mass Air Flow Sensor

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Pull off cable plug on mass air flow sensor.

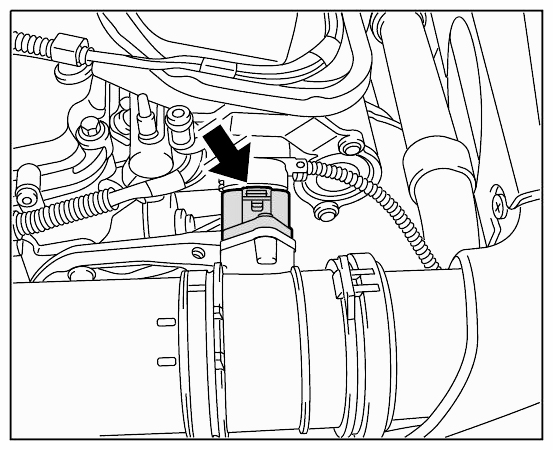

Fig 1: Locating Air Flow Sensor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Loosen hose clamp of connecting tube to the air flow sensor and carefully press in the two plastic clips on the air cleaner side. Disconnect air flow sensor from the connecting tube. If necessary, lever out with a small screwdriver. -arrow-

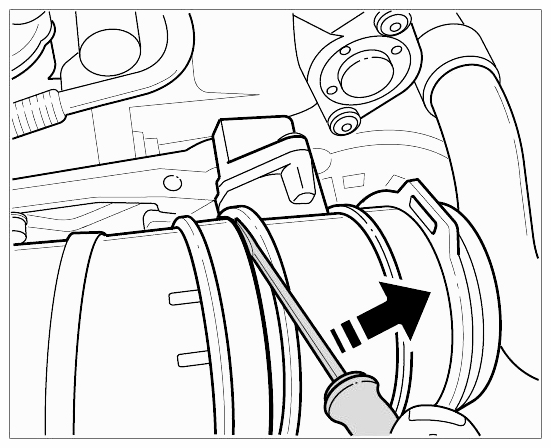

Fig 2: Disconnecting Air Flow Sensor From Connecting Tube Using Screwdriver
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
