Installing Hot-Film Mass Air Flow Sensor

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Press air flow sensor onto connecting tube. Make sure the clip connections on the air cleaner side engage correctly. Fasten hose clamp.
  2. Connect cable plug for mass air flow meter.

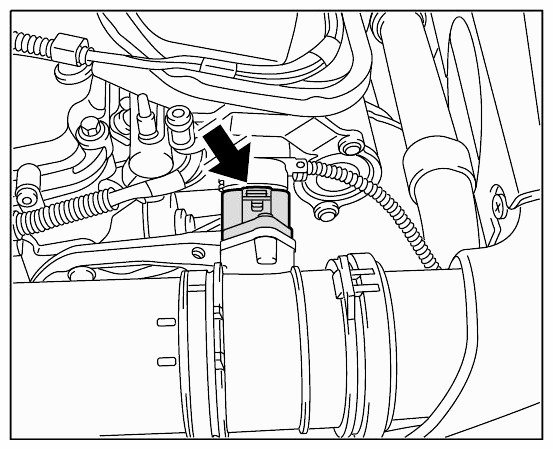

    Fig 1: Locating MAF Sensor
    G09410072Courtesy of PORSCHE CARS NORTH AMERICA, INC.
