Removing Throttle Housing

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

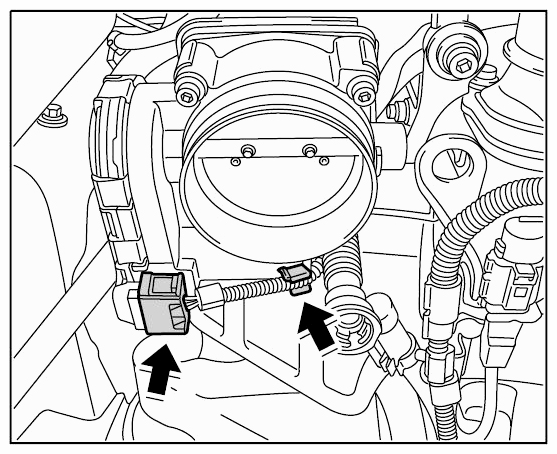

Pull off cable plugs on the throttle housing and pull cable out of the clip -arrows- .

Fig 1: Locating Throttle Adjuster Cable Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

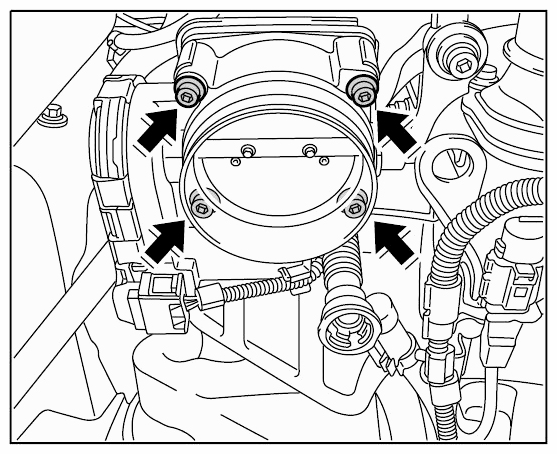

Loosen the four screws on the throttle housing -arrows- . Remove throttle housing and check the condition of the sealing ring. Replace the sealing ring if necessary.

Fig 2: Locating Throttle Housing Mounting Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
