Checking Fuel Distribution Pipe (Fuel Rail) For Leaks

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Leaking fuel supply lines

Emerging fuel
Risk of fire

→ Perform leak test.

Inspect lines at and around the high-pressure pump for leaks when the engine is idling after the test drive. -1 to 8- Unclip wiring harness if necessary →-arrow- .

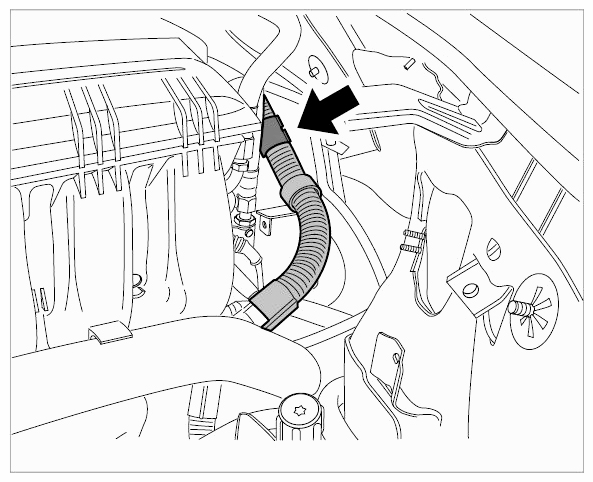

Fig 1: Locating High-Pressure Pump Wiring Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

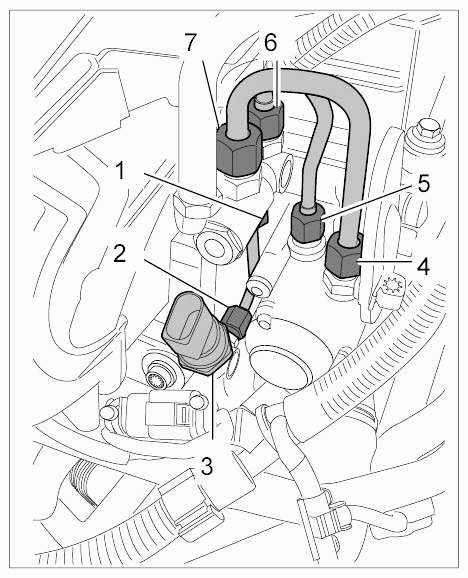

Fig 2: Identifying High-Pressure System Threaded Connections
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
When the engine is idling, inspect the fuel lines for leaks using a mirror and a lamp. -1 to 8-
