Removing Rear Lid Seal

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the rear lid.
  2. Removing seal.
    1. 2.1. Remove the seal from the circumference of the sheetmetal flange -arrows-  .

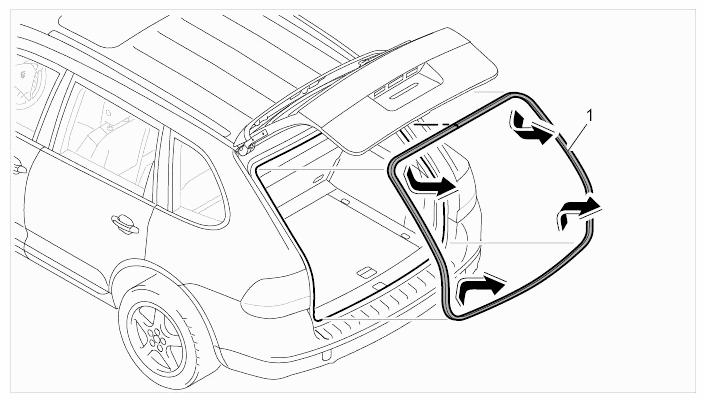

      Fig 1: Removing Seal From Circumference Of Sheetmetal Flange
      G09421622Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Cleaning sheetmetal flange.
    1. 3.1. Remove all the old sealant from the sheetmetal flange.
