Disassembling Rear Lid

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

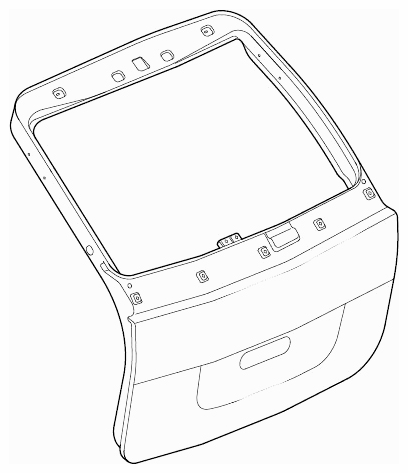

Fig 1: Disassembling Of Rear Lid

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

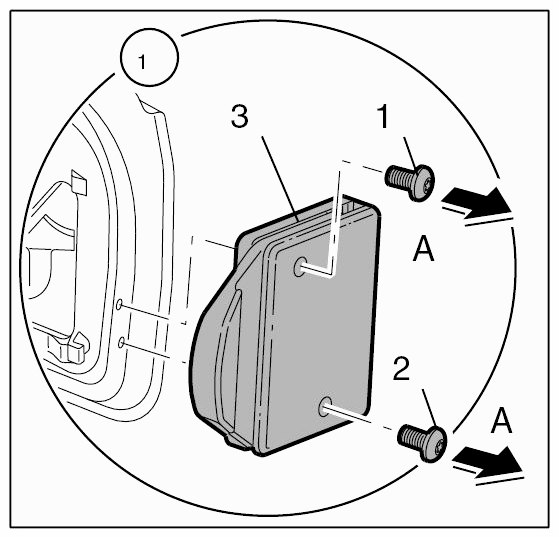

Removing lateral adjusting buffer.
1. 1.1. Unscrew and remove fastening screws -1, 2- for the lateral adjusting buffer -3- -Arrow A- .
2. 1.2. Remove the adjusting buffer -3- .

  Fig 2: Removing Fastening Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

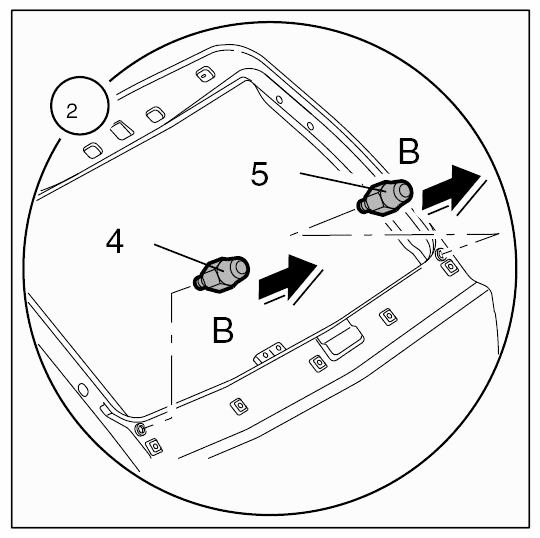

Removing buffer for rear window.
1. 2.1. Unscrew buffer for rear window -4, 5- and remove -Arrows B- .

  Fig 3: Removing Buffer For Rear Window
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
