Install Rear Lid

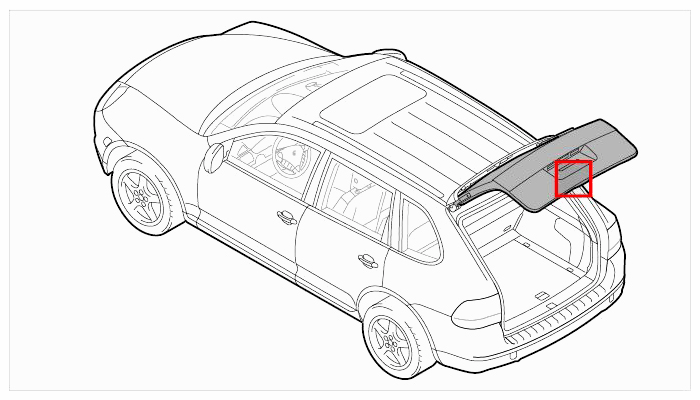

Fig 1: Identifying Rear Lid Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

• The flange area between the lid hinge and lid must be sealed with sprayable sealing strip 00000 during each reinstallation.

1. Apply sprayable sealant in the flange area between the lid hinge -5-  and lid -6- must be coated with sprayable sealant 00000.

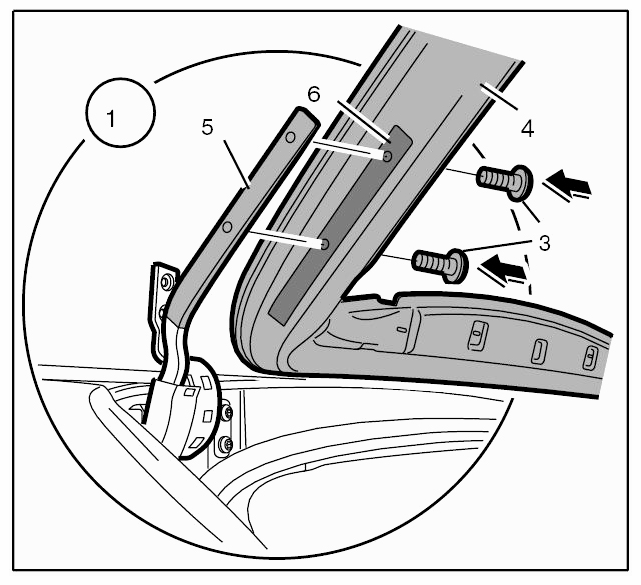

   Fig 2: Applying Sprayable Sealant In Flange Area Between Lid Hinge

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Mount the rear lid -4-  with the help of a second person.
   Fig 3: Installing Rear Lid

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Screw in the fastening screws -3-  and tighten slightly.

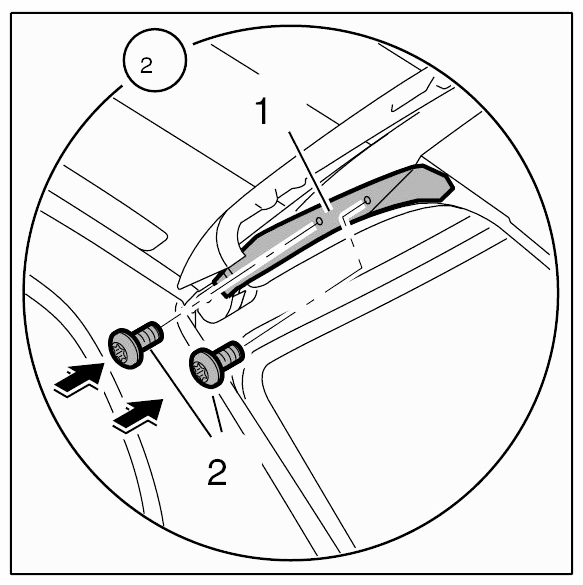

   Fig 4: Installing Fastening Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Adjust rear lid ↔ 559015 ADJUSTING REAR LID .
5. Tighten fastening screws -3-  to the specified tightening torque ↔ Tightening torque: 25 Nm (19 ft lbs.)+/-2.5 Nm (+/-2.0 ft lbs.).
   Fig 5: Tightening Fastening Screws To Specified Tightening Torque

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Install wire harness on rear lid ↔ Installing wiring harness tailgate
7. Position side plastic panel -1-  on lid.
   Fig 6: Positioning Side Plastic Panel

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
8. Screw in -2-  fastening screws.

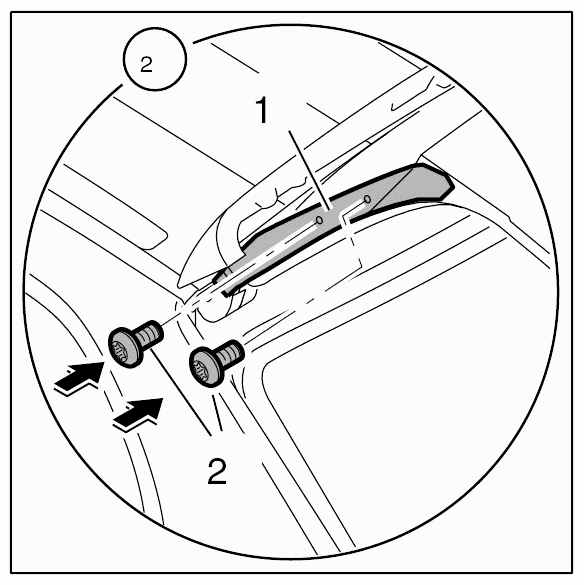

   Fig 7: Installing Fastening Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
9. Close rear lid.
