Removing Rear Lock Upper Part

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

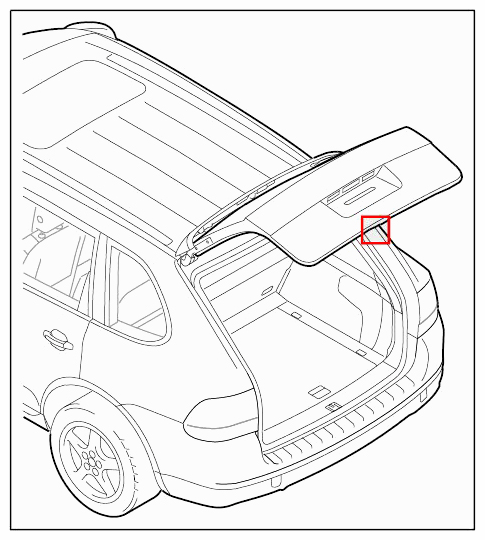

Fig 1: Identifying Rear Lock Upper Part

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove trim panel for rear lid → Removing lining for rear lid .
Disengage actuating rod.

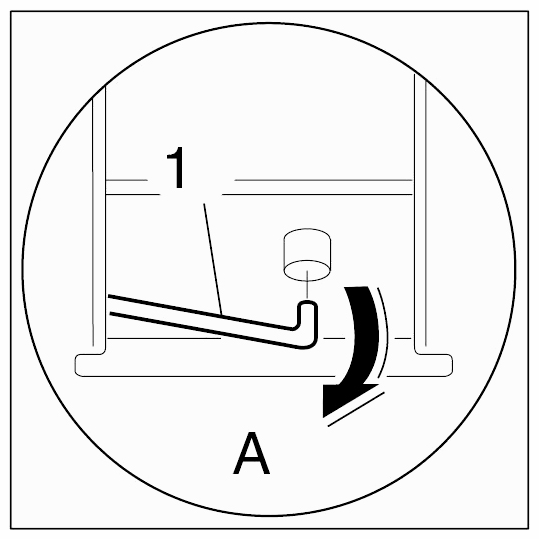

1. 2.1. Pull control rod -1- out of lid release -arrow A- .

  Fig 2: Identifying Clip Control Rod
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 3: Pulling Out Control Rod
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove upper part of lock.

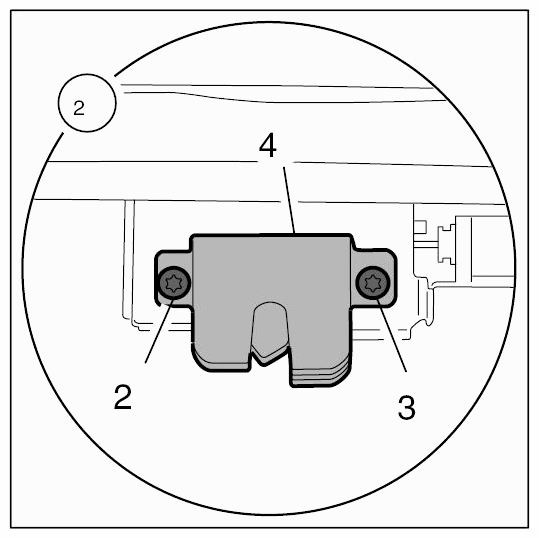

1. 3.1. Undo fastening screws -2, 3- .

  Fig 4: Identifying Fastening Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 3.2. Pull upper part of lock -4- out of the assembly opening -arrow B- until there is access to the electric plug connection.

  Fig 5: Pulling Out Upper Part Of Lock
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

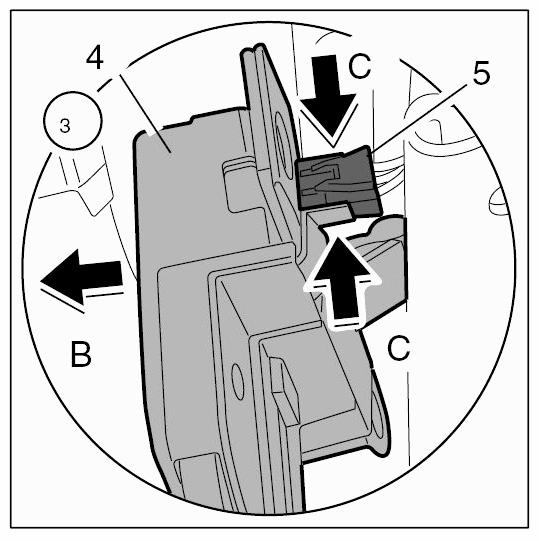

3. 3.3. Press in locking tabs of connector -5- -arrows C- and pull off connector.

  Fig 6: Pressing In Locking Tabs Of Connector
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. 3.4. Remove upper part of lock.
