Installing Rear Lock Upper Part

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

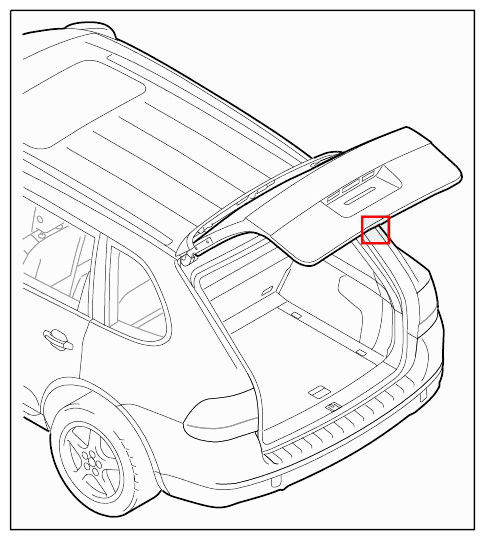

Fig 1: Identifying Rear Lock Upper Part

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Install upper part of lock
1. 1.1. Push electric plug connection -5- onto lock upper part -4- -arrow A- .

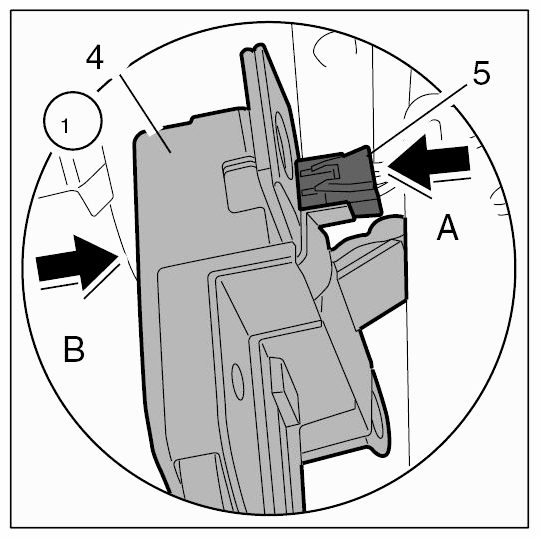

  Fig 2: Pushing Electric Plug Connection
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 1.2. Insert upper part of lock into the assembly opening (-arrow B-).

  Fig 3: Inserting Upper Part Of Lock Into Assembly Opening
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 1.3. Screw in fastening screws -2, 3- and tighten to the specified tightening torque. → Tightening torque: 25 Nm (19 ft lbs.)+/-2.5 Nm (+/-2.0 ft lbs.)

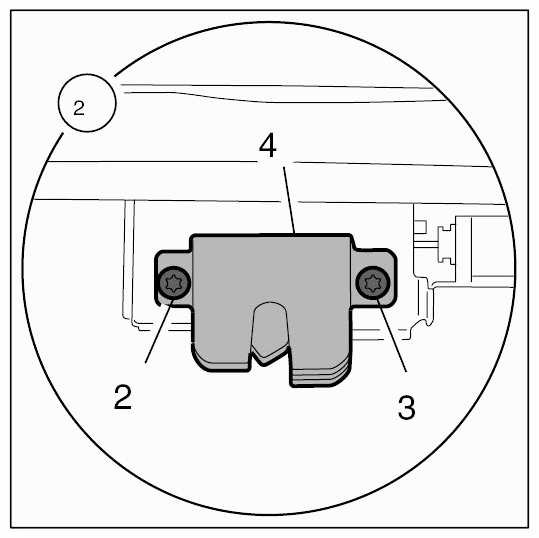

  Fig 4: Identifying Fastening Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Engage actuating rod.
1. 2.1. Clip control rod -1- into the lid release -arrow C- .

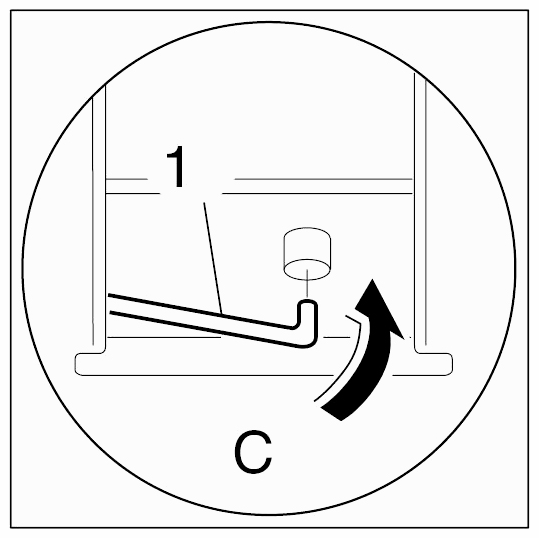

  Fig 5: Identifying Clip Control Rod
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 6: Installing Clip Control Rod
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Check adjustment of rear lid and if necessary adjust lock lower part accordingly → Adjusting Rear Lid .
Remove trim panel for rear lid → Installing lining for rear lid .
