Removing Lower Part Of Rear Lock (Vehicles With Closing Aid)

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

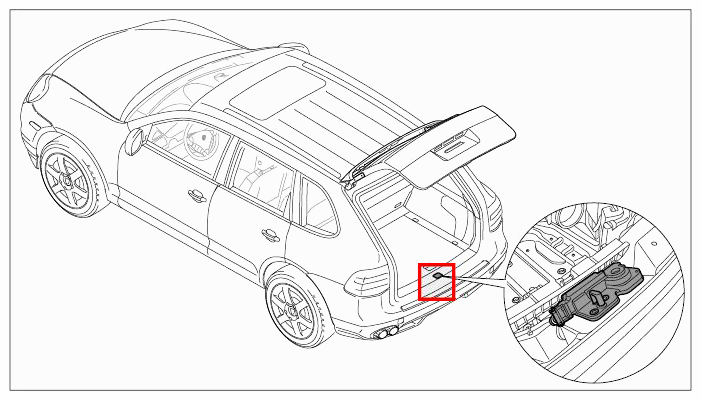

Fig 1: Identifying Of Lower Part Of Rear Lock

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Switch off ignition and remove ignition key.

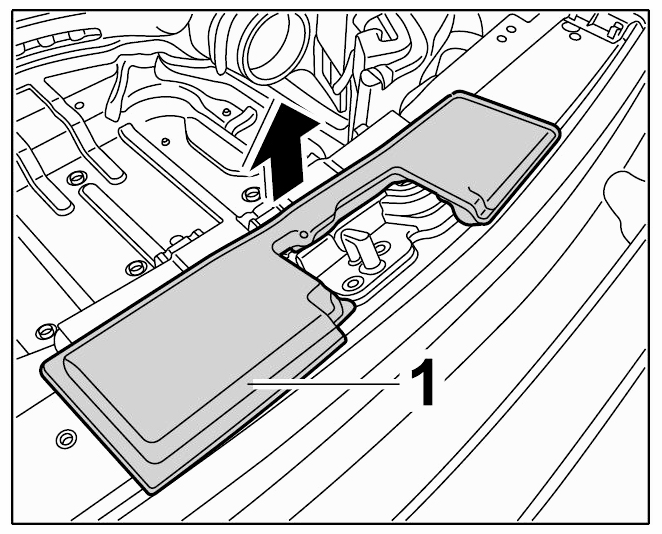

Lift up plastic foam -1- and remove it -arrow- .

Fig 2: Removing Plastic Foam
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Mark installation position of lower part of rear lock.

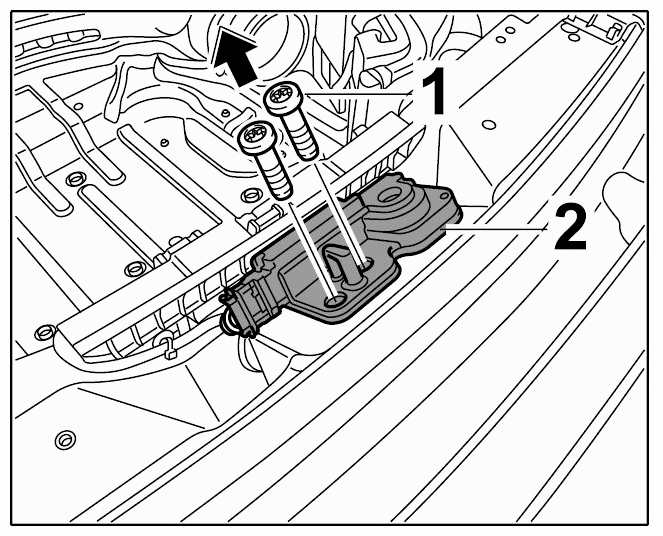

Unscrew fastening screws -1- on lower part of rear lock -2- (-arrow-).

Fig 3: Removing Lower Part Of Rear Lock And Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

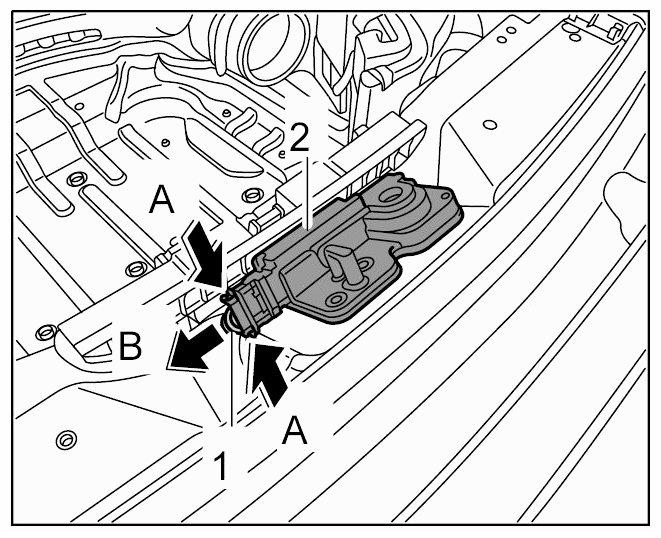

Release connector -1- on lower part of rear lock -2- (-arrows A-) and pull it off -arrow B- .

Fig 4: Removing Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
