Installing Rear Lid Release Motor

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

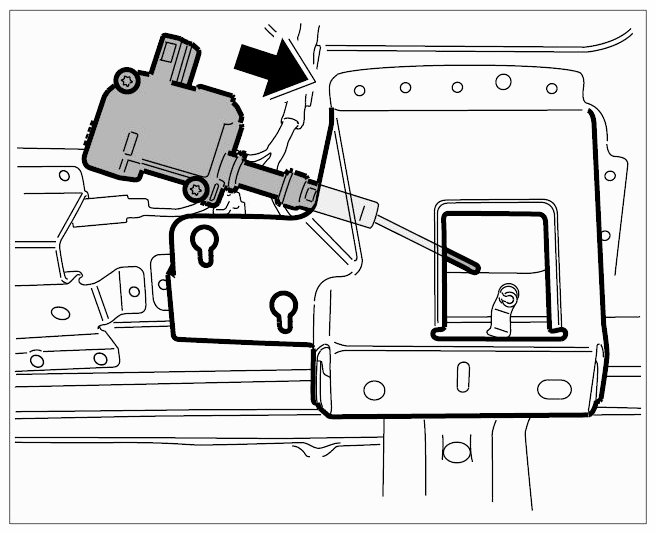

Insert motor from the side and use both fastening screws to engage and position it in the mounting point.

Fig 1: Installing Motor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

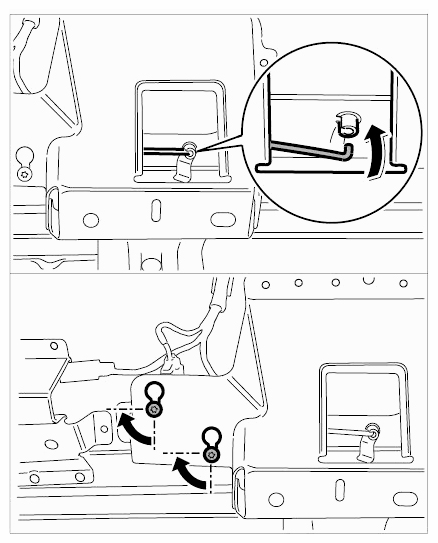

Clip control rod into the lid release.

Fig 2: Clipping Control Rod Into Lid Release
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tighten fastening screws.

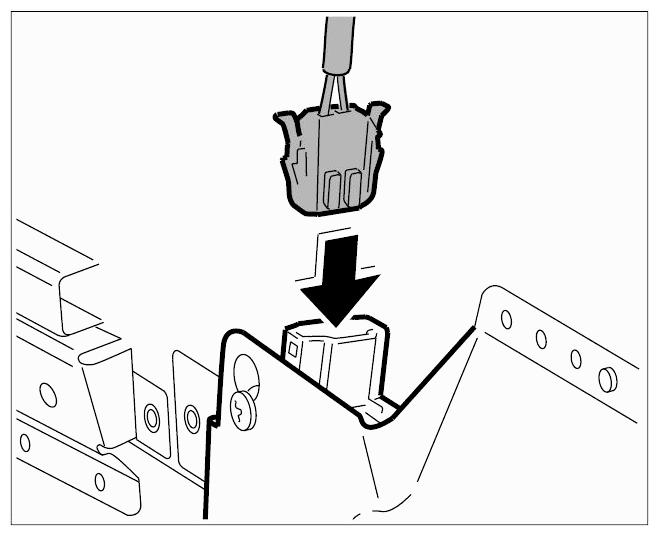

Press the electric plug into the motor until it clicks into place.

Fig 3: Pressing Electric Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
