Removing Rear Lid Release Switch

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

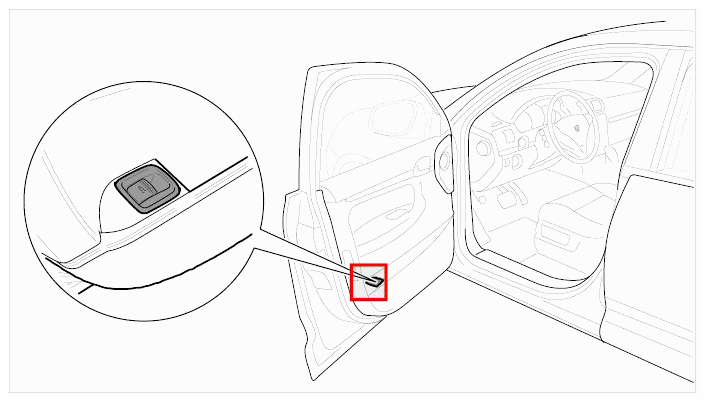

Fig 1: Identifying Installation Position Of Rear Lid Release Switch
G09421537Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Disengage rear lid release switch at the two clips using a plastic wedge -arrow A-  and lift it up to remove it -arrow B-  .

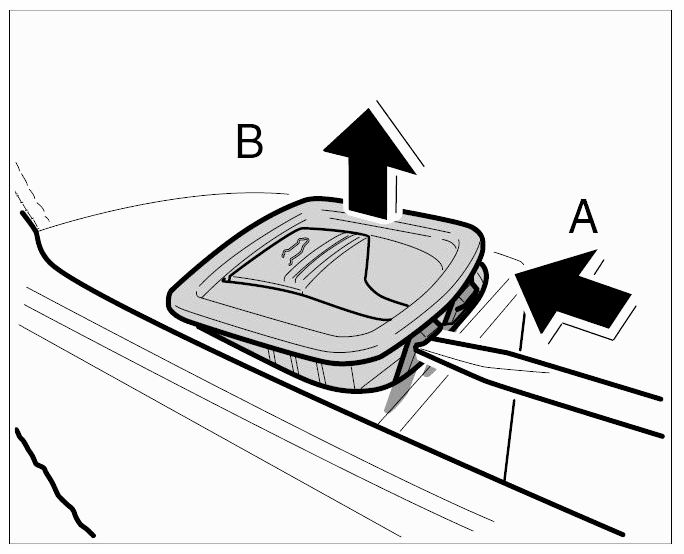

    Fig 2: Removing Rear Lid Switch
    G09421538Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Release -arrow A-  and pull off -arrow B-  connector.

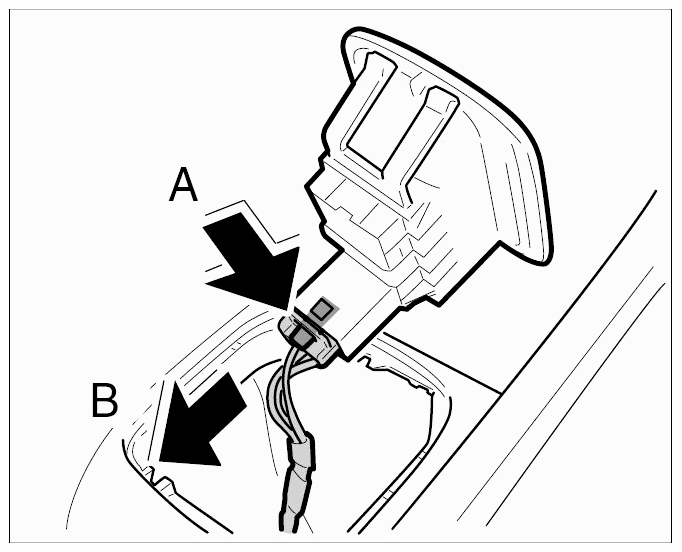

    Fig 3: Pulling Off Connector
    G09421539Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Release housing at the four clips using a small screwdriver -arrows A-  and remove lid-release switch -1-  from the housing -arrow B-  .

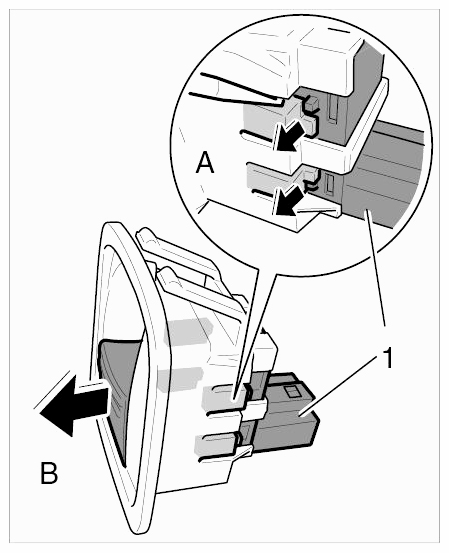

    Fig 4: Removing Lid-Release Switch
    G09421540Courtesy of PORSCHE CARS NORTH AMERICA, INC.
