Installing Rear Lid Release Switch

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

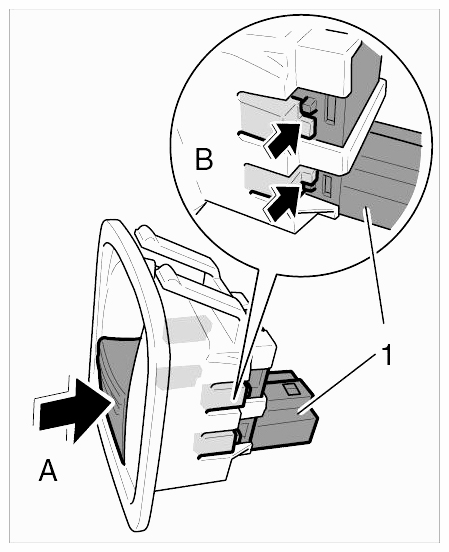

  1. Slide lid-release switch -1-  into the housing -arrow A-  until the four clips engage securely -arrows B-  .
    Fig 1: Installing Lid-Release Switch
    G09421541Courtesy of PORSCHE CARS NORTH AMERICA, INC.

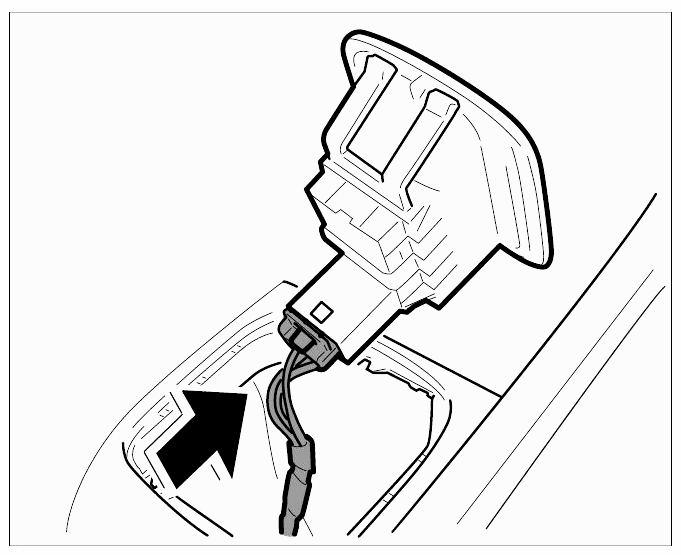

  2. Plug in connector on lid-release switch -arrow-  until the connector engages securely.
    Fig 2: Plugging In Connector
    G09421542Courtesy of PORSCHE CARS NORTH AMERICA, INC.

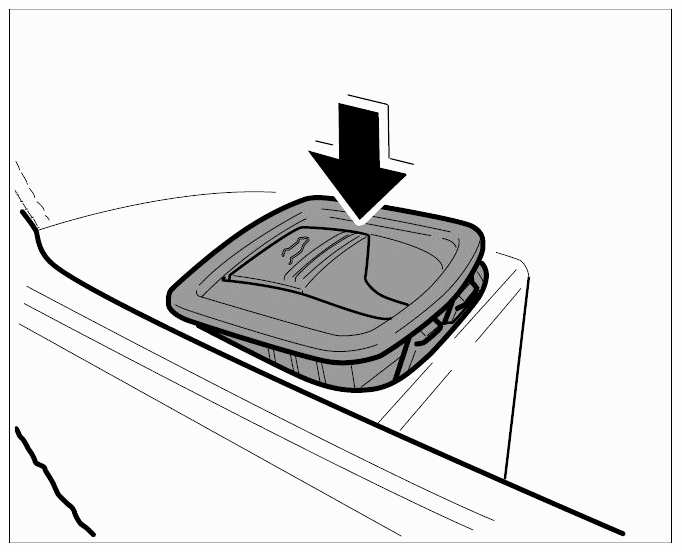

  3. Press lid-release switch into the door trim panel -arrow-  until the lid-release switch engages securely.
    Fig 3: Clipping In Lid-Release Switch
    G09421543Courtesy of PORSCHE CARS NORTH AMERICA, INC.
