Installing Rear Lid Buzzer

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

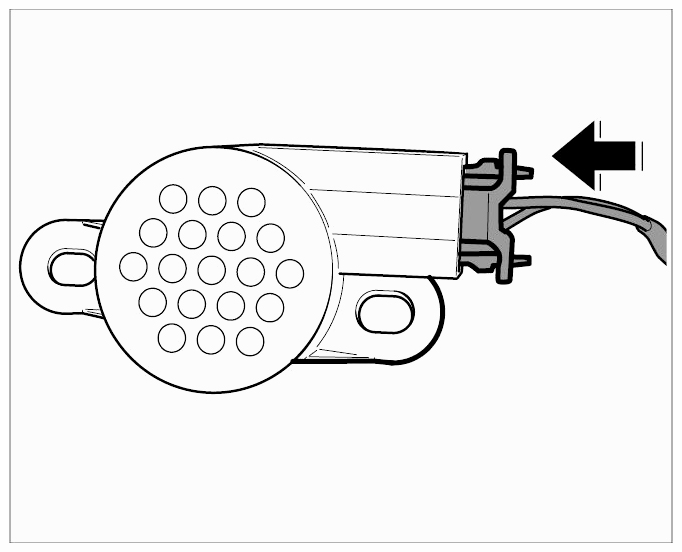

  1. Plug in connector on rear lid buzzer -arrow-  until the connector engages securely.
    Fig 1: Plugging In Connector On Rear Lid Buzzer
    G09421535Courtesy of PORSCHE CARS NORTH AMERICA, INC.

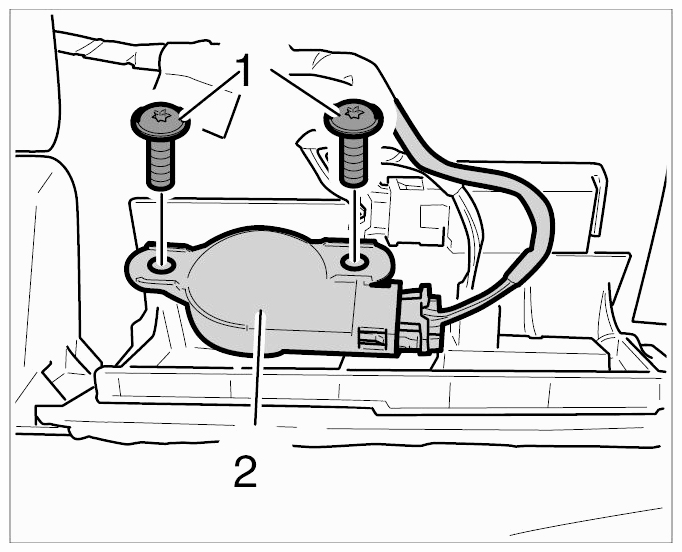

  2. Position rear lid buzzer -2-  on the rear lid trim panel and secure with the fastening screws -1-  .
    Fig 2: Positioning Rear Lid Buzzer
    G09421536Courtesy of PORSCHE CARS NORTH AMERICA, INC.
