Removing Tilt Sensor For Rear Lid

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

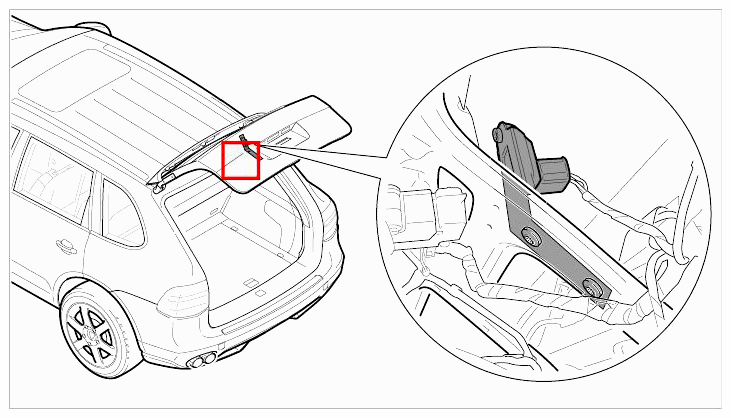

Fig 1: Identifying Installation Position Of Tilt Sensor For Rear Lid

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

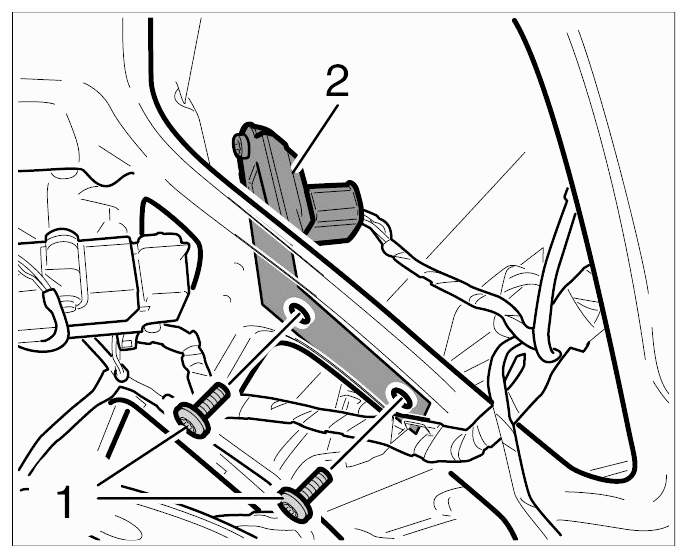

Unscrew fastening screws -1- and remove tilt sensor for rear lid along with the holder -2- .

Fig 2: Removing Tilt Sensor For Rear Lid And Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

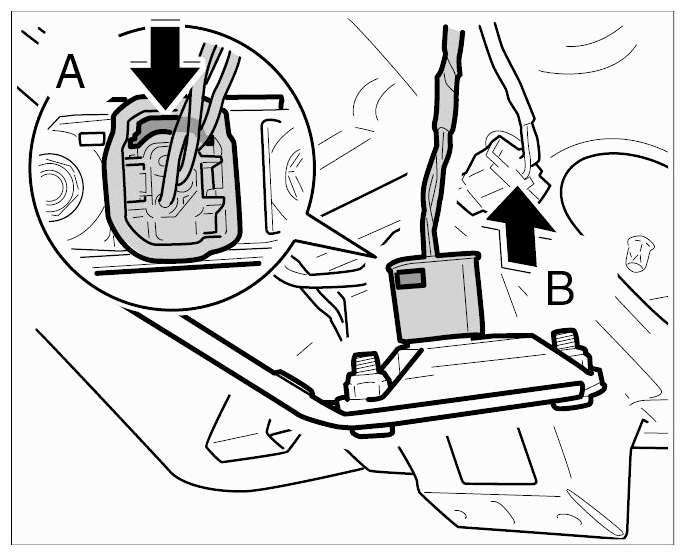

Release connector -arrow A- and pull it off the rear-lid tilt sensor -arrow B- .

Fig 3: Pulling Off Connector On Rear-Lid Tilt Sensor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

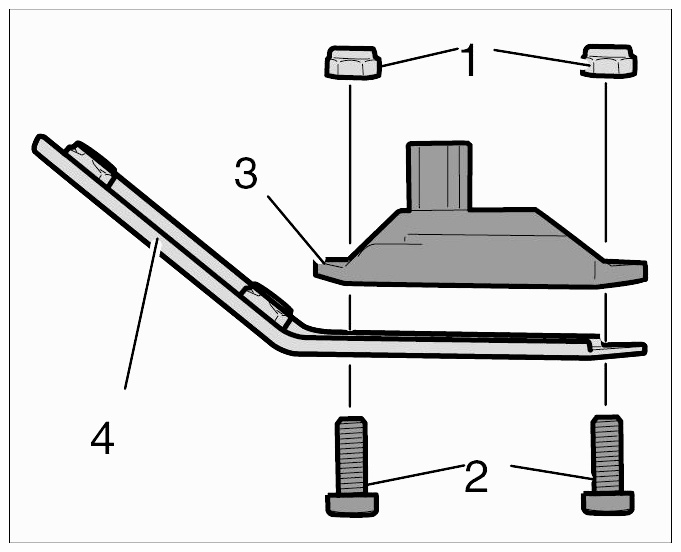

Remove fastening nuts -1- on the fastening screws -2- and remove tilt sensor for rear lid -3- from the holder -4- .

Fig 4: Removing Tilt Sensor For Rear Lid
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
