Installing Tilt Sensor For Rear Lid

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

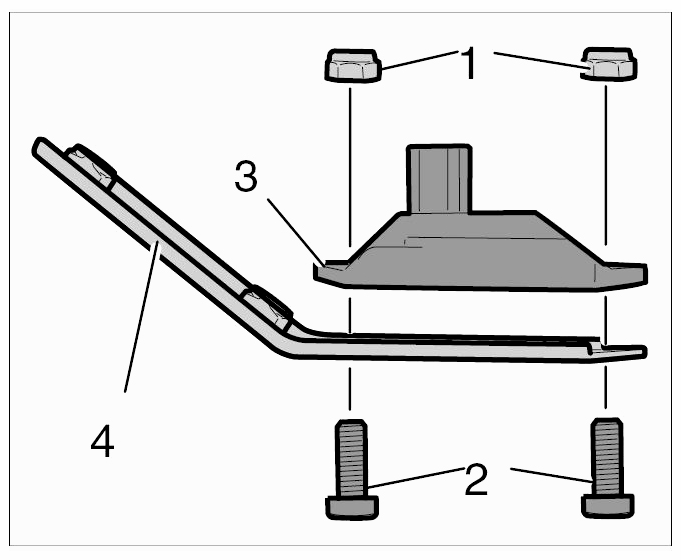

Position tilt sensor for rear lid -3- on the holder -4- and secure with the fastening screws -2- and fastening nuts -1- . → Tightening torque: 10 Nm (7.5 ft lbs.)

Fig 1: Installing Tilt Sensor For Rear Lid
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

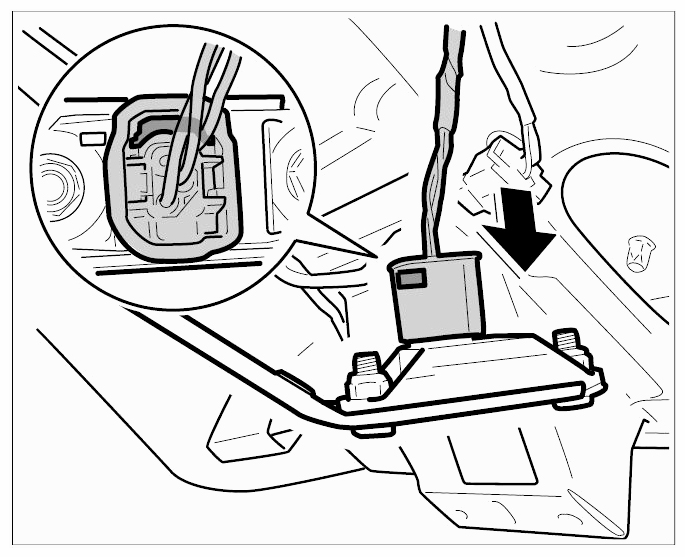

Plug in connector on tilt sensor for rear lid -arrow- until the connector engages securely.

Fig 2: Plugging In Connector On Tilt Sensor For Rear Lid
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

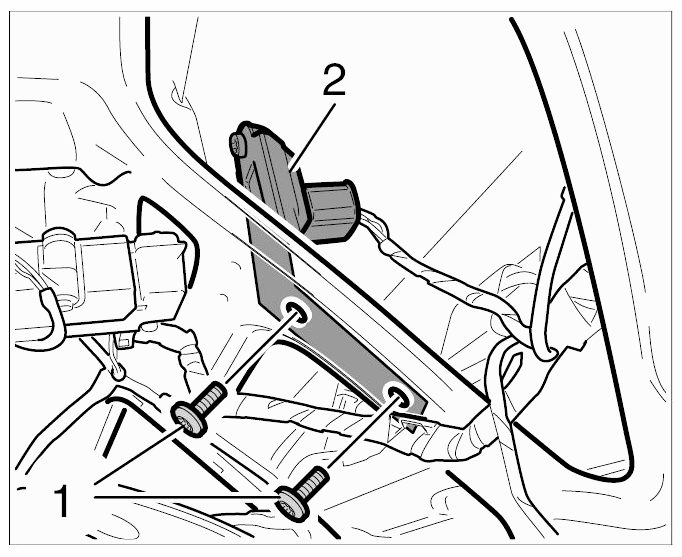

Position tilt sensor for rear lid together with the holder -2- on the rear lid and secure with the fastening screws -1- . → Tightening torque: 10 Nm (7.5 ft lbs.)

Fig 3: Securing Tilt Sensor For Rear Lid And Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
