Removing Hydraulic Unit For Rear Lid

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

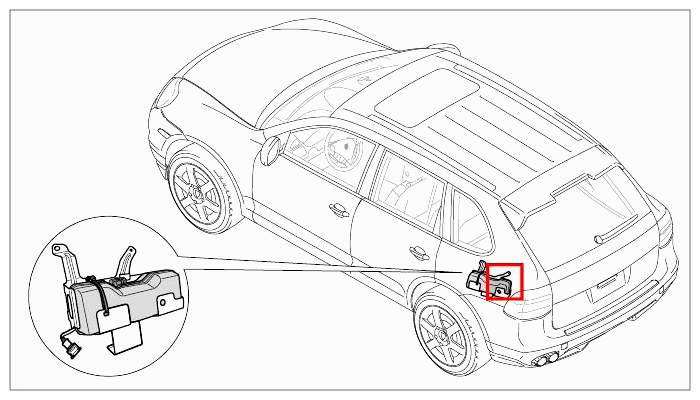

Fig 1: Identifying Installation Position Of Hydraulic Unit For Rear Lid
G09421470Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Secure rear lid using the WE1222 transmission and unit jack Junior Jack 0.5 to prevent it from accidentally falling shut.

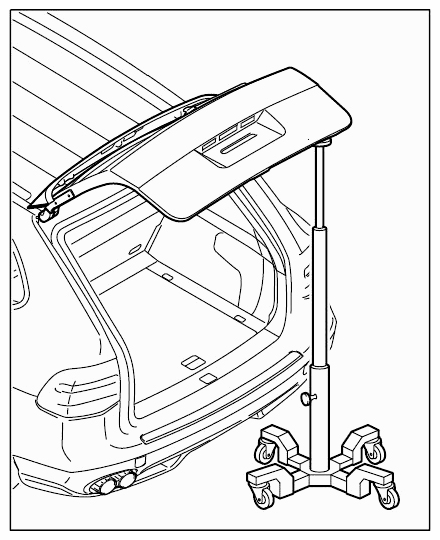

    Fig 2: Securing Rear Lid To Prevent From Falling Shut
    G09421471Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Information

    • Only for vehicles without auxiliary air conditioner.

    Unscrew fastening screws -1-  and remove package box -2- (-arrow-)  .

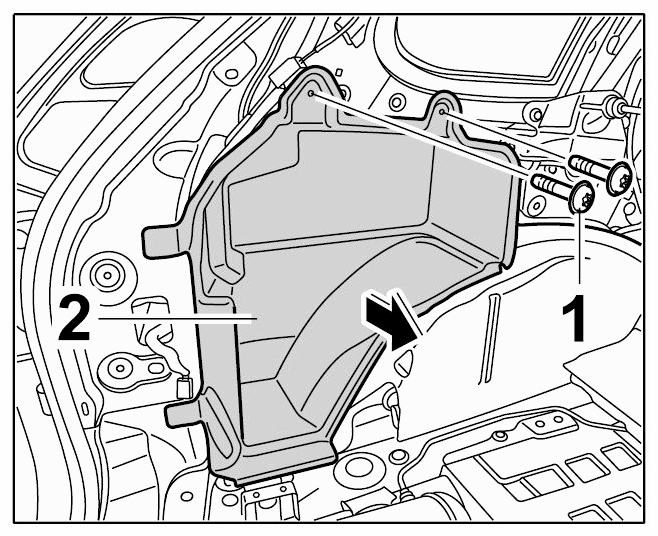

    Fig 3: Removing Package Box
    G09421472Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Release holder -2-  at the two clips -arrows A-  and remove rear lid control unit -1-  out of the holder -2- (-arrow B-).

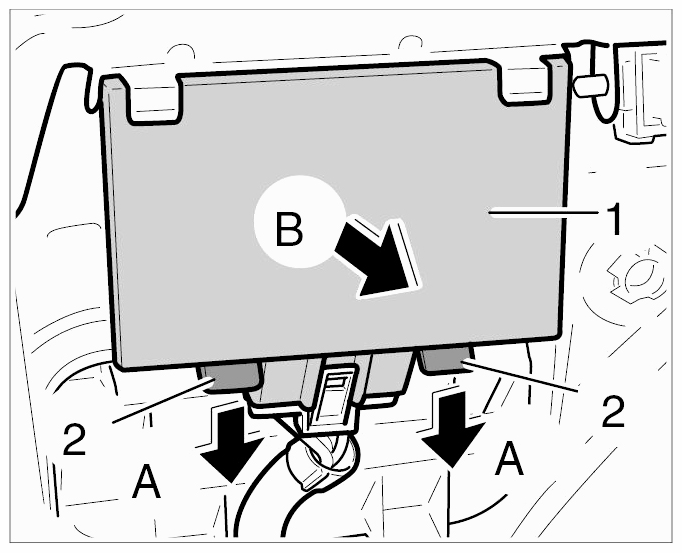

    Fig 4: Removing Rear Lid Control Unit
    G09421473Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Disconnect plug connection.

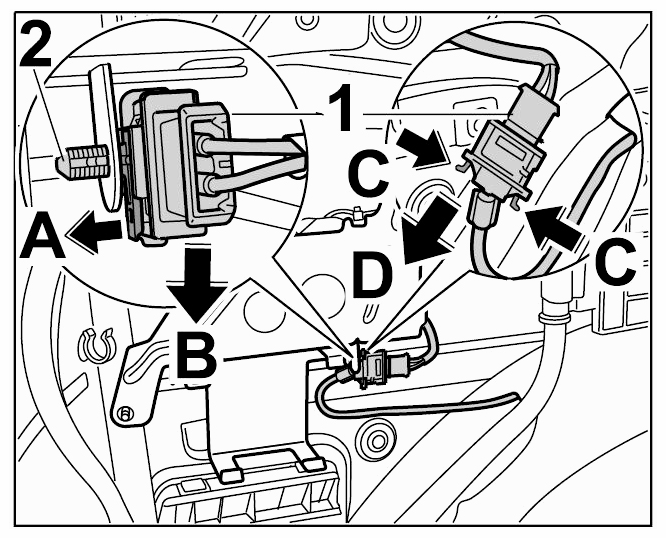

    Fig 5: Disconnecting Plug Connection
    G09421474Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 3.1. Release plug connection -1-  at the retaining clip -2- (-arrow A-)  and push down and out -arrow B-  .
    2. 3.2. Press locking tabs together -arrows C-  and disconnect plug connection -1- (-arrow D-).
    NOTE: Incorrect line routing
    • Risk of damage to lines and hoses
    • Malfunction and fault memory entry on control unit

    → Avoid small bending radii when routing lines.

    → File down edges and burrs in the routing area or mask them with adhesive tape.

    → Maintain a sufficient distance from components exposed to high temperatures while driving.

    NOTE: Incorrect line routing
    • Risk of damage to lines and hoses
    • Malfunction and fault memory entry on control unit

    → Avoid small bending radii when routing lines.

    → File down edges and burrs in the routing area or mask them with adhesive tape.

    → Maintain a sufficient distance from components exposed to high temperatures while driving.

  4. Unclip water drain hose -1-  and oil pressure lines -2 and 3  - from the holders -4 and 5- (-arrows-).

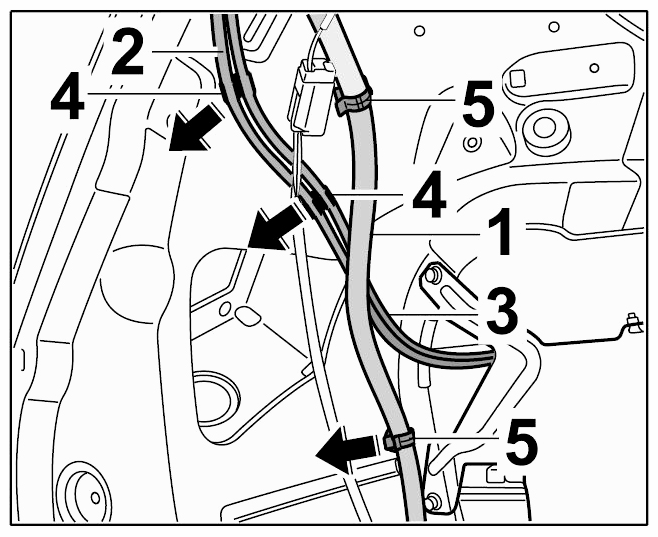

    Fig 6: Unclipping Water Drain Hose And Oil Pressure Lines
    G09421475Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Unscrew fastening nuts -2-  and swivel out holder with the hydraulic unit -1- (-arrow-).

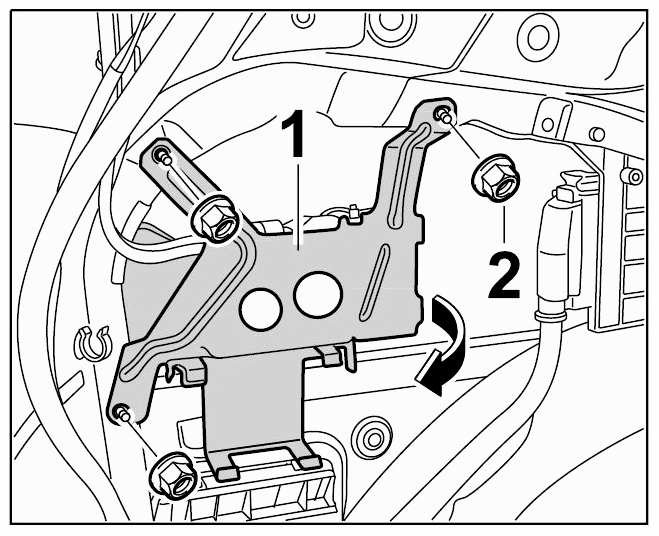

    Fig 7: Swivelling Out Hydraulic Unit Holder
    G09421476Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    NOTE: Incorrect handling of hydraulic system
    • Malfunction in hydraulic system
    • Risk of damage to hydraulic system

    → Do not disconnect plug-in couplings while opening or closing the rear lid.

    → Secure the lid mechanically to prevent it from closing before disconnecting plug-in couplings.

    → Do not short-circuit plug-in couplings.

    → Do not operate the system while plug-in couplings are disconnected.

    → Do not press actuating cylinder in or pull it out manually when the hydraulic unit is removed.

    → Protect hydraulic system from contamination.

  6. Release plug-in couplings.

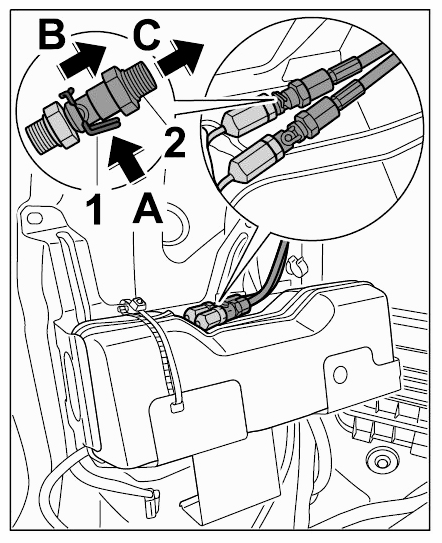

    Fig 8: Removing Plug-In Coupling (Red)
    G09421477Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 6.1. Red oil pressure line:  Press in clamp -1- (-arrow A-),  release (-arrow B-)  and pull out plug-in coupling -2- (-arrow C-).
    2. 6.2. Blue oil pressure line:  Swivel oil pressure line -1-  to the side slightly -arrow A-  . Press in clamp -2- (-arrow B-),  release (-arrow C-)  and pull out plug-in coupling -3- (-arrow D-).

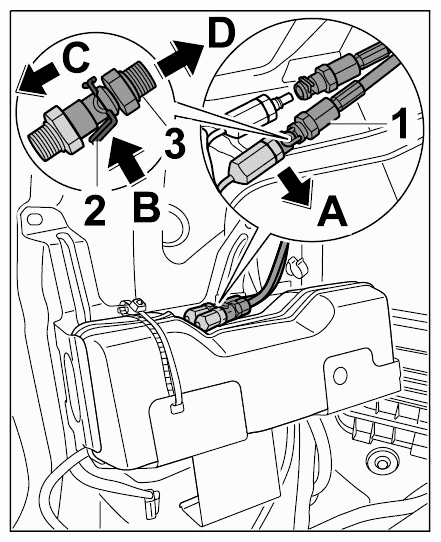

      Fig 9: Removing Plug-In Coupling (Blue)
      G09421478Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  7. Remove holder with hydraulic unit from the vehicle.
  8. Cut tie-wrap -1-  and remove hydraulic unit -2-  out of the holder -3- (-arrow-).

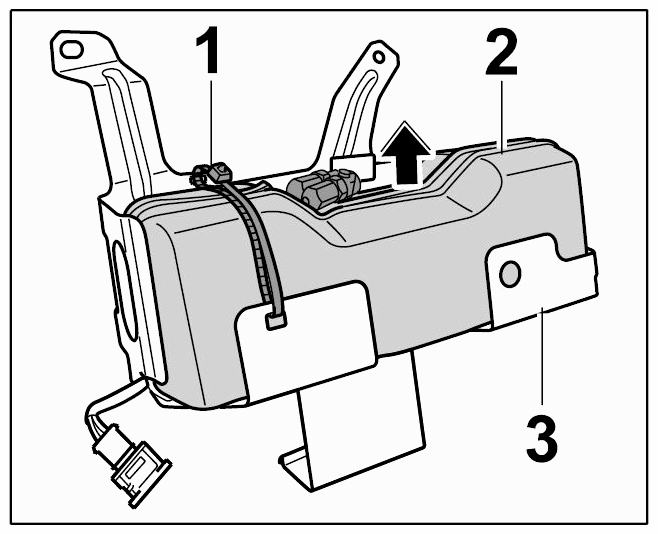

    Fig 10: Removing Hydraulic Unit
    G09421479Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  9. Check rubber strips -1-  in the marked area of the holder -2-  , replace if necessary.

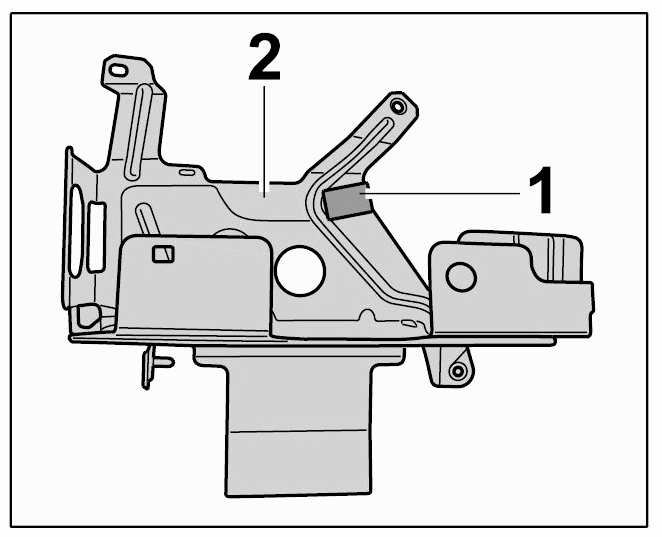

    Fig 11: Identifying Rubber Strips And Holder Of Marked Area
    G09421480Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  10. Detach upper part of sound capsule -1- (-arrow A-)  and remove hydraulic unit -2- (-arrow B-).

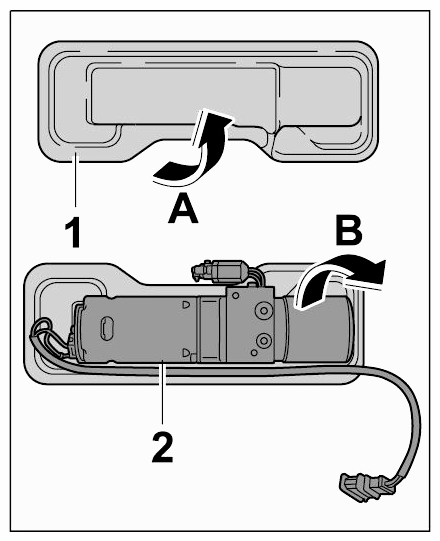

    Fig 12: Removing Hydraulic Unit
    G09421481Courtesy of PORSCHE CARS NORTH AMERICA, INC.
