Removing Release For Rear Lid

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

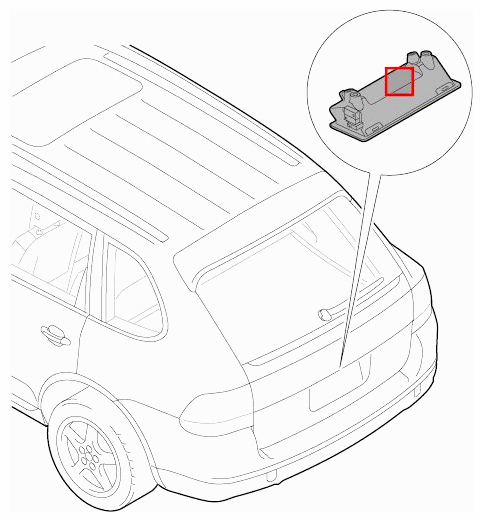

Fig 1: Overview Of Rear Lid Release

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

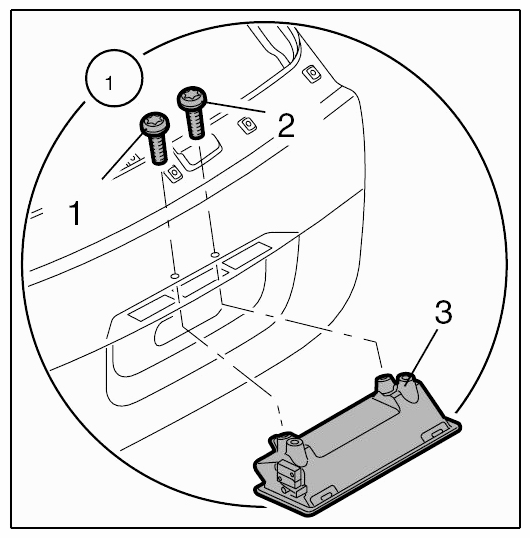

Undo the fastening screws -1 and 2- for the lid release -3- on the inside of the lid.

Fig 2: Identifying Fastening Screws For Lid
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

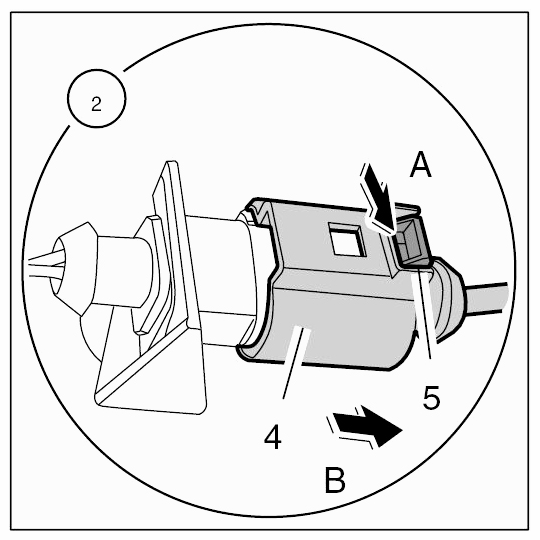

Release connector -4- on inside of lid at locking tab -5- -Arrow A- and pull it off -Arrow B- .

Fig 3: Pulling Out Off Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

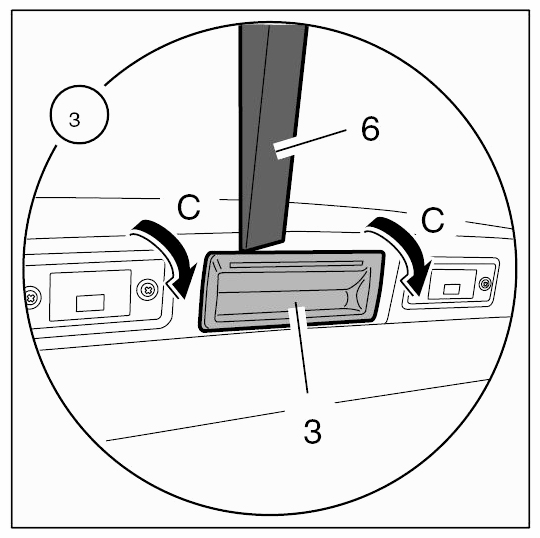

Carefully prise out the lid release -3- with a plastic wedge -6- at the rear edge of the housing -Arrows C- .

Fig 4: Removing Rear Edge Of Housing Using Plastic Wedge
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

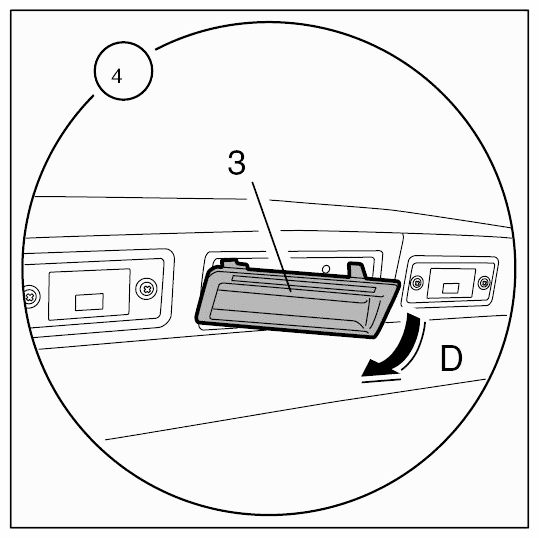

Pull the lid release -3- to the rear out of the assembly opening, beginning on the right side, and remove -Arrow D- .

Fig 5: Removing Lid
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
