Installing Release For Rear Lid

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Starting on the left side, insert the lid release -3- into the assembly opening and press upwards -Arrow A- until the lid release -3- engages audibly.

Fig 1: Installing Lid
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Push in connector -4- -Arrow B- until locking tab -5- is heard to engage.

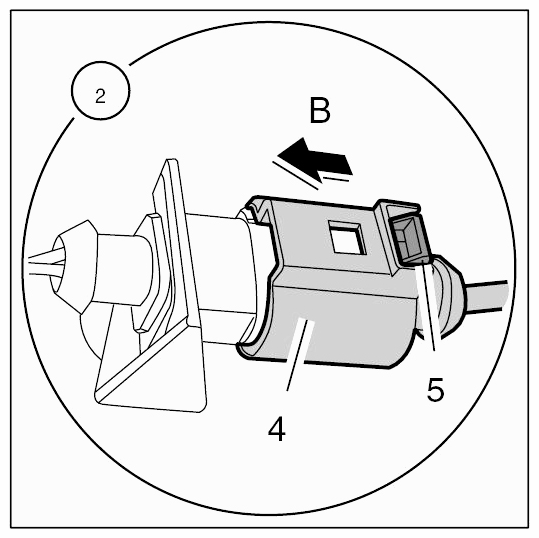

Fig 2: Pushing In Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw in and tighten fastening screws -1 and 2- . → Tightening torque: 3 ft lbs.+/-0.4 ft lbs.

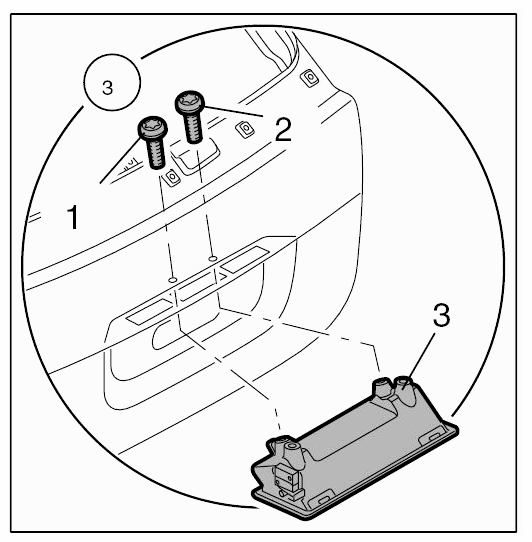

Fig 3: Tightening Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
