Removing Actuator For Filler Flap

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

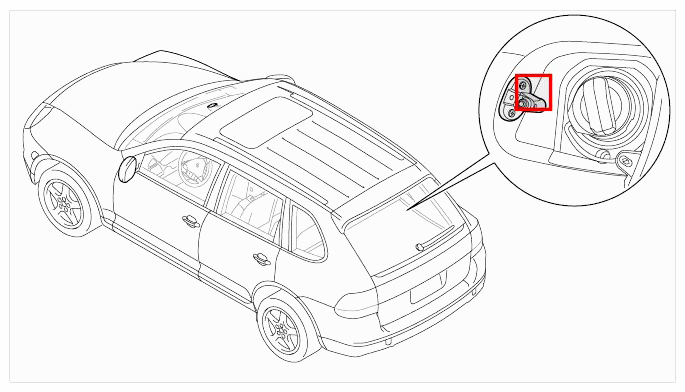

Fig 1: Identifying Installation Position Of Actuator For Filler Flap

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Open the filler flap.
Removing actuator

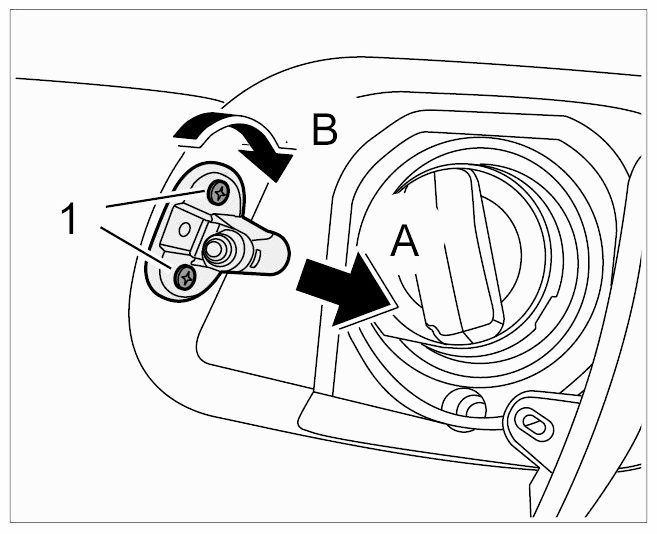

Fig 2: Removing Actuator For Filler Flap
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 2.1. Unscrew the fastening screws -1- and pull the actuator out by approx. 10 mm -Arrow A- .
2. 2.2. Turn the actuator approx. 90° clockwise -Arrow B- and remove it -Arrow A- .
