Installing Actuator For Filler Flap

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Inserting actuator

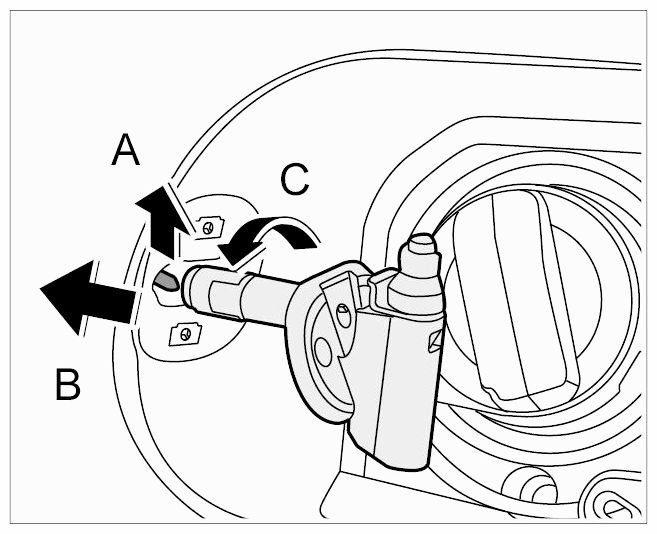

    Fig 1: Inserting Actuator For Filler Flap
    G09421460Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 1.1. Use a small screwdriver to move the lock peg into installation position -Arrow A-  .
    2. 1.2. Place the actuator on the lock peg -Arrow B-  .
    3. 1.3. Turn the actuator approx. 90° anti-clockwise at around 10 mm in front of the installation position -Arrow C-  .
  2. Push the actuator in fully and secure with the fastening screws -1-  . → Tightening torque: 12 Nm (9 ft lbs.)

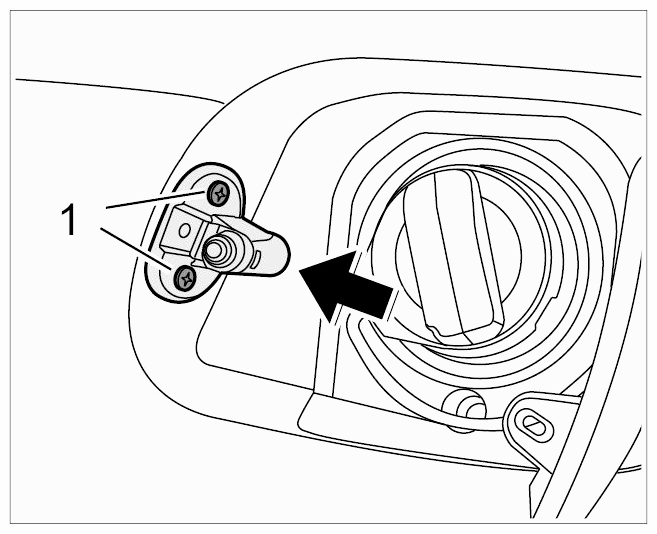

    Fig 2: Securing Actuator For Filler Flap
    G09421461Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Close the filler flap.
