Installing Filler Flap

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

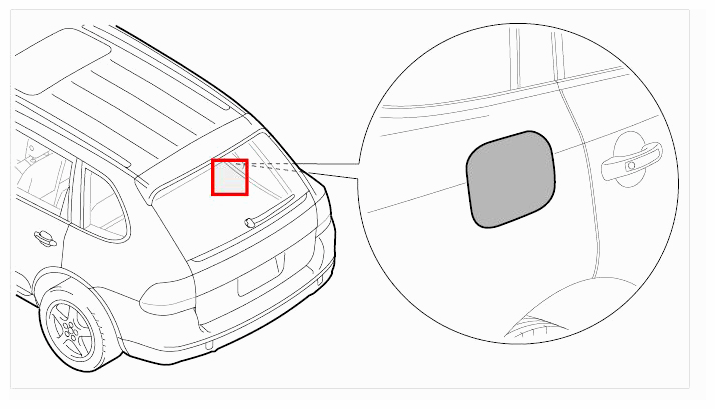

Fig 1: Identifying Position Of Filler Flap

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

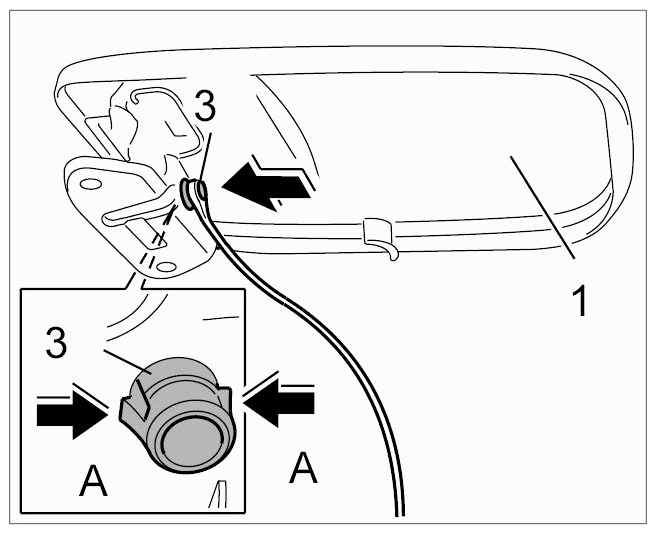

Clip in fixing clip -4- until the locking tabs -arrows A- audibly engage.

Fig 2: Locating Fixing Clip
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Position filler flap -3- on side panel cut-out.

Fig 3: Positioning Filler Flap
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

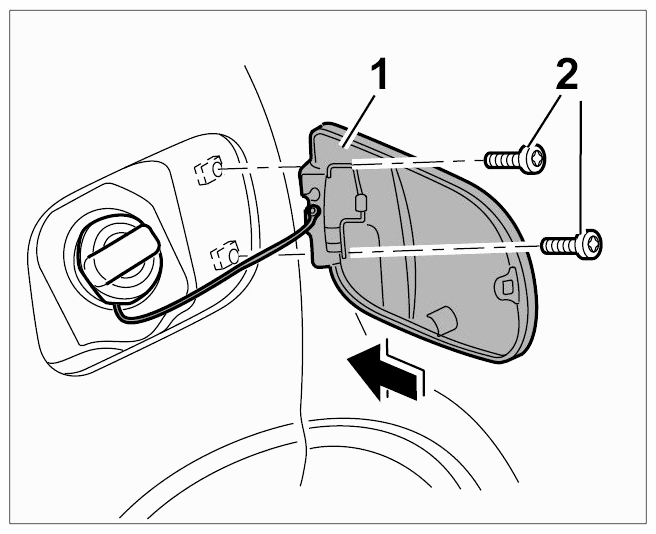

Screw in fastening screws -2- hand-tight.

Fig 4: Installing Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Check gap dimension to side panel and adjust if necessary by moving the filler flap. → Gap dimension: 2 mm+/-0.3 mm
Tighten fastening screws -2- to specified tightening torque. → Tightening torque: 8 Nm (6 ft lbs.)

Fig 5: Installing Fastening Screws To Specified Tightening Torque
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Check locking mechanism of filler flap actuator.
