Removing Switch For Rear Lid

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

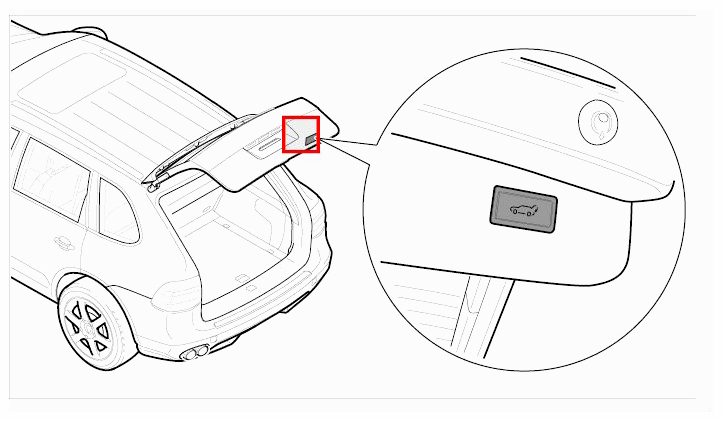

Fig 1: Identifying Installation Position Of Switch For Rear Lid

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unclip switch for rear lid from the trim panel -arrow- using a screwdriver.

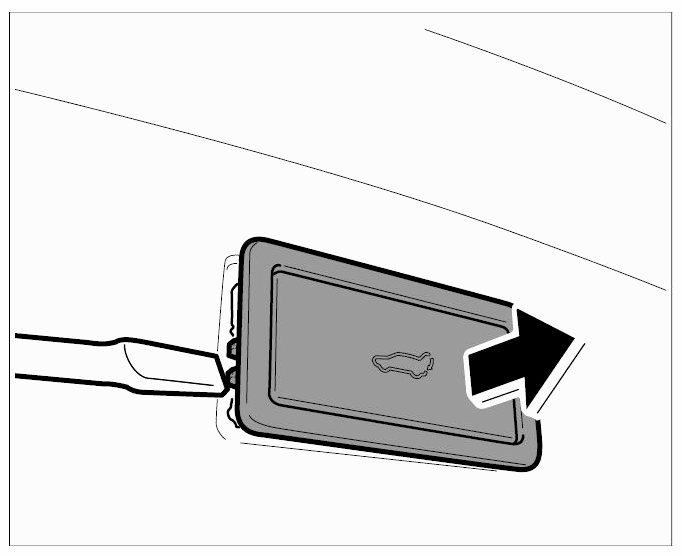

Fig 2: Removing Switch For Rear Lid
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release connector -arrow A- and pull it off switch for rear lid -arrow B- .

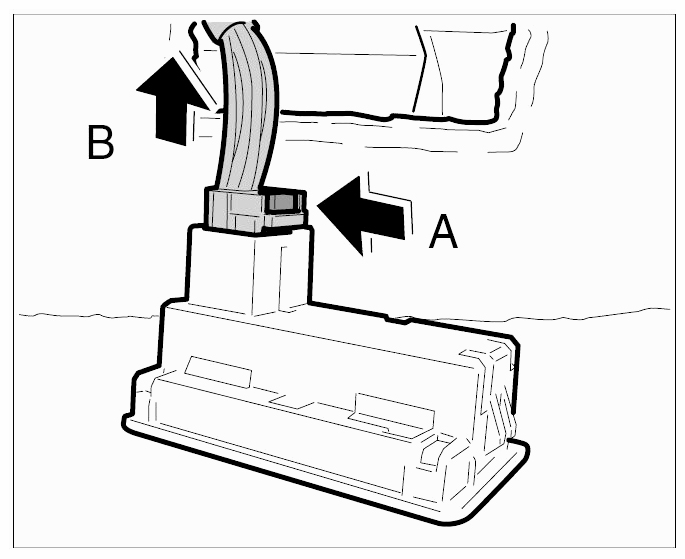

Fig 3: Pulling Out Off Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
