Installing Switch For Rear Lid

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Plug in connector on switch for rear lid -arrow-  until the connector engages securely.

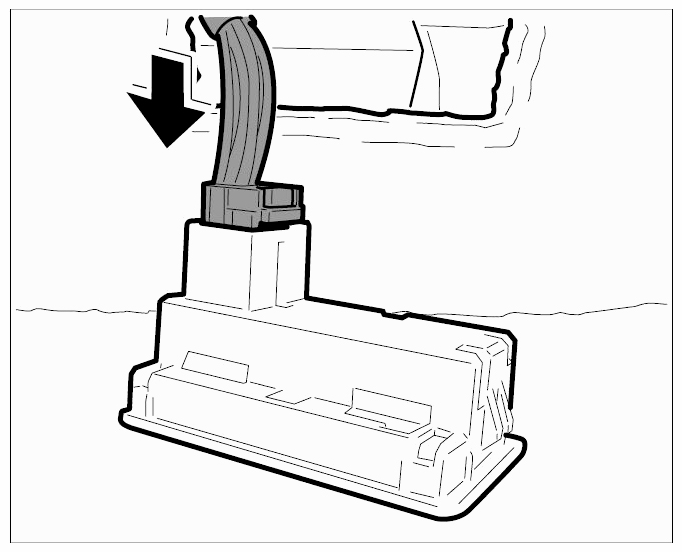

    Fig 1: Plugging In Connector On Switch For Rear Lid
    G09421446Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Press switch into the trim panel -arrow-  .

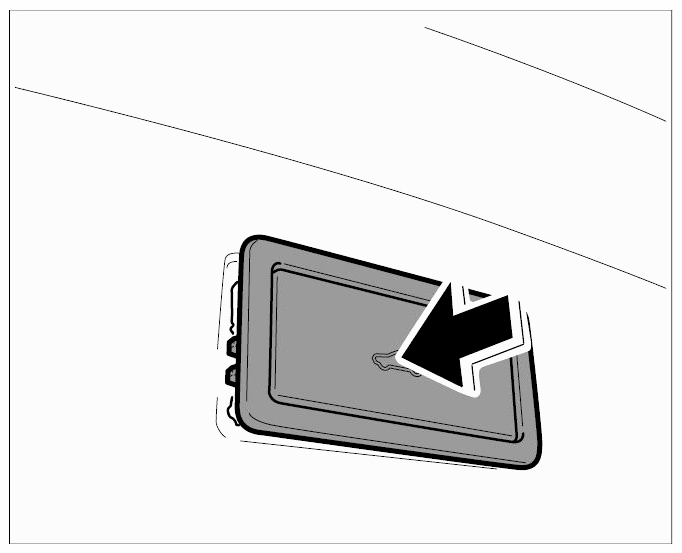

Fig 2: Pressing Switch Into Trim Panel
G09421447Courtesy of PORSCHE CARS NORTH AMERICA, INC.
