Removing Front Lid Hinge

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

If a front lid hinge fails to work properly, it can be replaced without having to remove the front lid. In such cases, a second person is required to hold the lid open during the repair process.

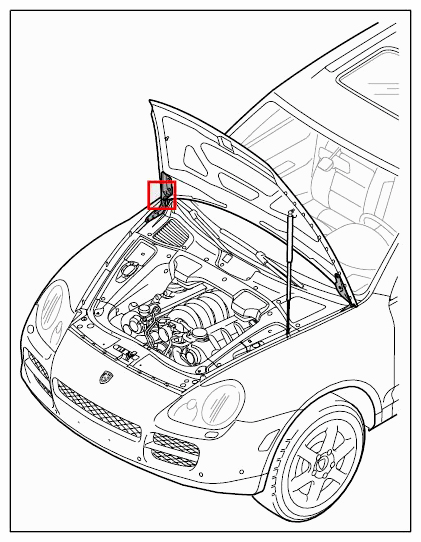

Fig 1: Identifying Front Lid Hinge

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

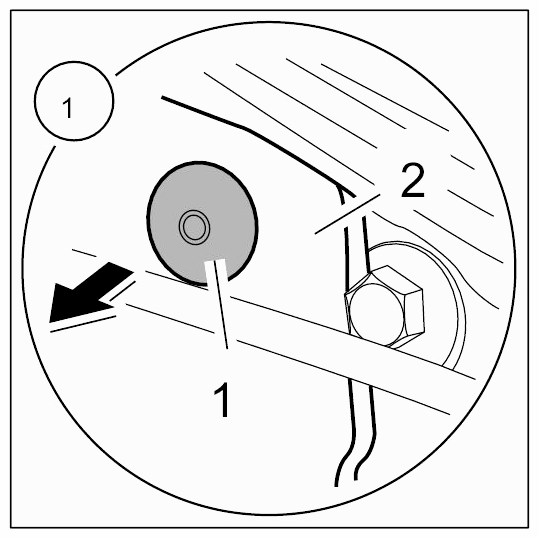

Release damping mat
1. 1.1. Unclip fixing clip -1- .
2. 1.2. Press aside damping mat -2- from hinge.

  Fig 2: Pressing Side Damping Mat
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

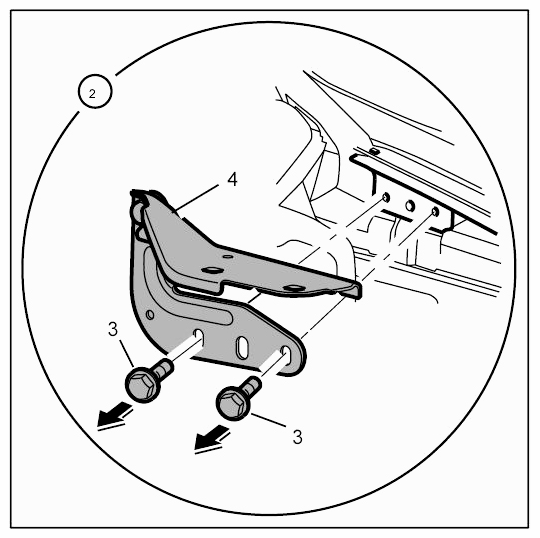

Remove hinge.
1. 2.1. Unscrew fastening screws -3- .
2. 2.2. Remove hinge -4- .

  Fig 3: Removing Fastening Screws And Hinge
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
