Installing Front Lid Hinge

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

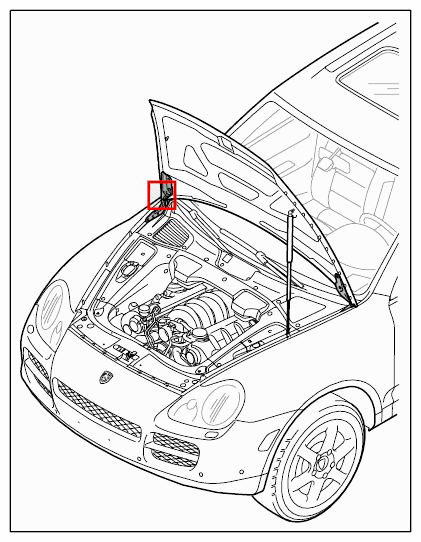

Fig 1: Identifying Front Lid Hinge

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fitting hinge
1. 1.1. Press aside damping mat -2- from hinge -4- .
2. 1.2. Roughly align the hinge -4- according to the old impression.
3. 1.3. Insert fastening screws (body side) -3- and tighten to specified tightening torque → Tightening torque: 15 ft lbs.+/-2 ft lbs..

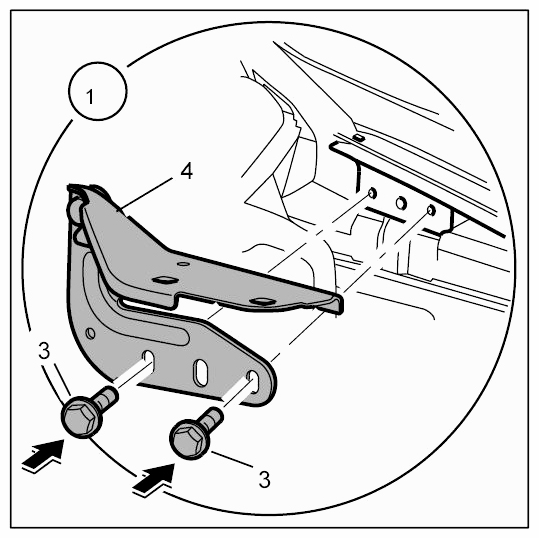

  Fig 2: Inserting Fastening Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fix damping mat
1. 2.1. Position damping mat -2- and clip fixing clip -1- in place.

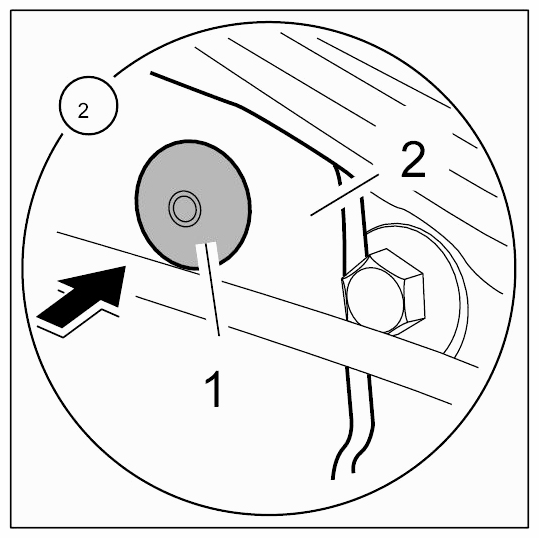

  Fig 3: Positioning Damping Mat
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
