Removing Front Lid

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

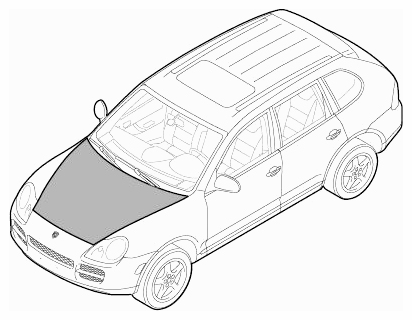

Fig 1: Identifying Front Lid

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Open front lid.
Remove insulation for front lid.
Remove wire harness on front lid → Removing wire harness for bonnet
Remove pneumatic spring on front lid → Removing Front Pneumatic Spring
Remove front lid.
1. 5.1. Undo fastening nuts -2- and unscrew from the studs -Arrow A- .
2. 5.2. Remove -1- front lid -Arrow B- .

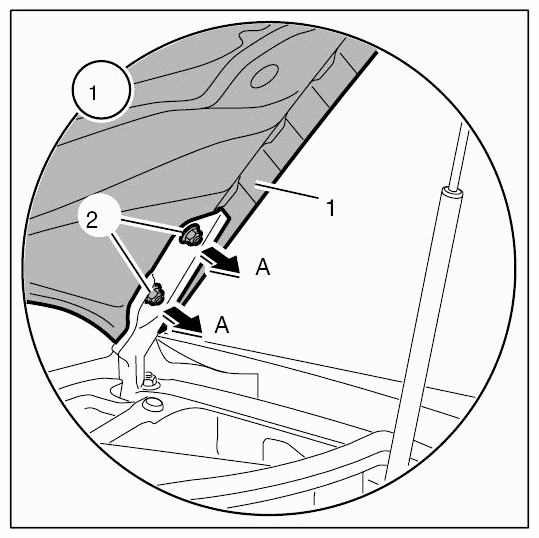

  Fig 2: Removing Front Lid Of Fastening Nuts And Studs
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

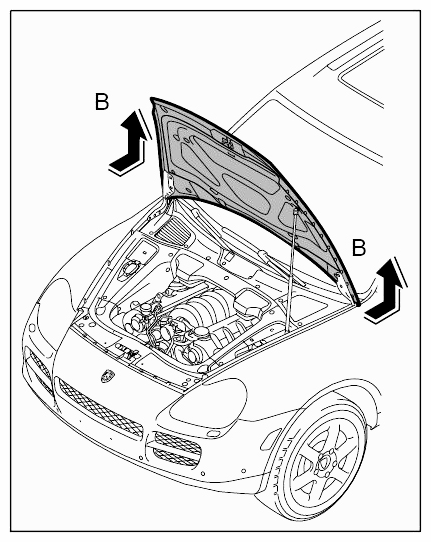

  Fig 3: Removing Front Lid
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
