Removing Upper Part Of Front Lock

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

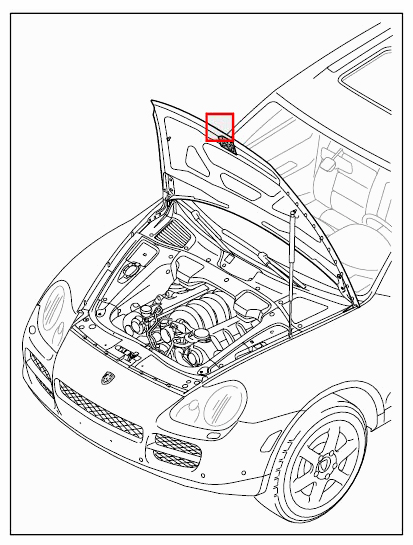

Fig 1: Identifying Front Lock Upper Part

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fig 2: Removing Mounting Screw

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Determine installation position.
1. 1.1. Determine the position of the upper part of the lock with respect to the lid according to the impression made at the factory -arrow- and note it down.

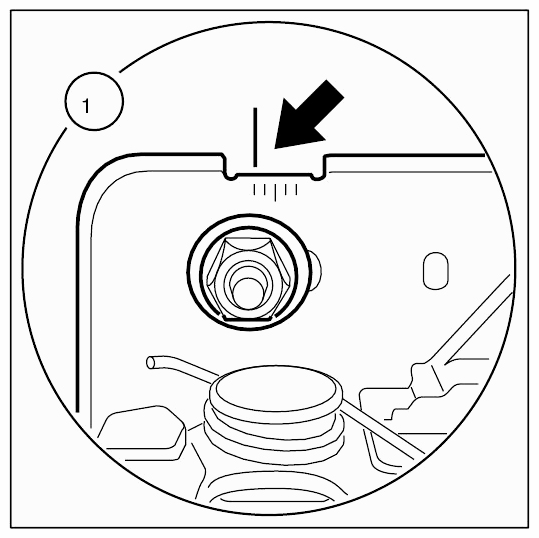

  Fig 3: Positioning Of Upper Part Lock
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Detach and remove upper part of front lock.
1. 2.1. Undo fastening nuts -1- and remove upper part of lock -2- .

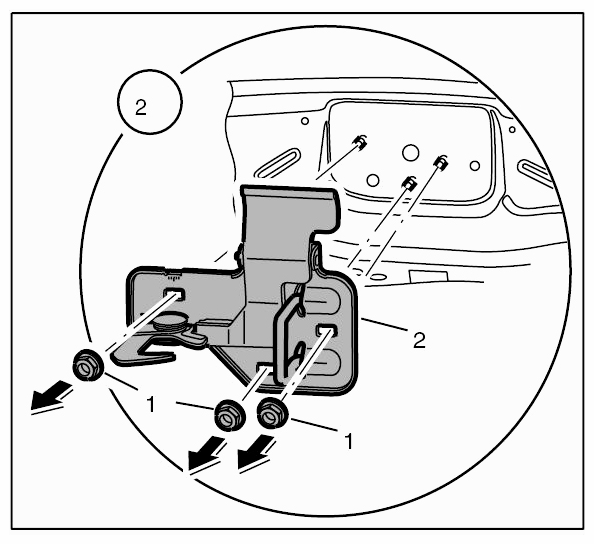

  Fig 4: Removing Upper Part Of Lock And Fastening Nuts
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
